Horizon FTS 28' Gooseneck Tilt Trailer 10K (24'+4')
| Stock # | 11541 |
| Año | 2026 |
| Marca | Horizon Trailers |
| Numero de Modelo | FTS 28' x 102" GN |
| Color | Red |
| Longitud del piso | 28' |
| Ancho | 102" |
| GVWR | 22,400 lbs |
| Unloaded Vehicle Weight | 5,860 lbs |
| Cargo Carrying Capacity | 16,540 lbs |
| Axle Capacity | 10,000 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7GT2833TR011541
Referencia interna:
11541
Standard Trailer Specs
DIMENSIONS
LENGTH: 28’
DECK HEIGHT: 36 ”
DECK WIDTH: 102”
WEIGHT RATING
GAWR: 10,000 LBS
GVWR: 22,400 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANTY
TRAILER WARRANTY: 3 YEAR FRAME/1 YEAR PARTS WARRANTY
TONGUE
TONGUE TYPE: NECKBOSS 12" ENGINEERED I-BEAM
LENGTH: 98" (FROM BEHIND RISER)
HEIGHT: 70" (FROM UNDERNEATH NECK)
SPARE: WELD ON SPARE TIRE MOUNT
COUPLER
STANDARD COUPLER: ADJUSTABLE 2-5/16" GN COUPLER (30,000 LBS)
JACKS
FRONT JACK: 2 SIDE WIND SPRING LOADED DROP JACK LEGS (12,000 LBS]
TOOLBOX
TOOLBOX: MEGA LOCKABLE TOOLBOX
SAFETY
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH]
FRAME
MAIN FRAME: 12" I-BEAM (19 LBS/FT]
SIDE
LEFT SIDE: LOCKABLE TOOLBOX (HOUSES BATTERIES AND PUMP)
DECK/BED
REAR OF DECK: 24' HYDRAULIC TILT DECK
DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL [3.50 LBS/FT] 16" SPACING
DECK HEIGHT: 36”
DECK WIDTH: 102”
WINCH PLATE: WINCH PLATE ON DECK
SIDES
RUB RAIL: 2" X 3/8" RUB RAIL
STAKE POCKETS: 1,5/8" X 3,5/8" (ID] STAKE POCKETS (SPACED AT 24")
SPOOLS: 2" X 10GA. PIPE SPOOLS (SPACED AT 24")
SIDES: SLIDE IN SIDE STEP ON BOTH SIDES
LIFT SYSTEM7HYDRAULICS
SYSTEM: 2 BUTTON HYDRAULIC - POWER UP / POWER DOWN
PUMP: KTI 12V HYDRAULIC PUMP
CONTROLLER: 14' CONTROL CABLE
WIRELESS CONTROLLER: TUFF WIRELESS 2 BUTTON WIRELESS REMOTE
DECK LIFT
LIFT CYLINDER: HOIST W/ 6" X 21" SINGLE PUSH CYLINDER (20,000 LBS)

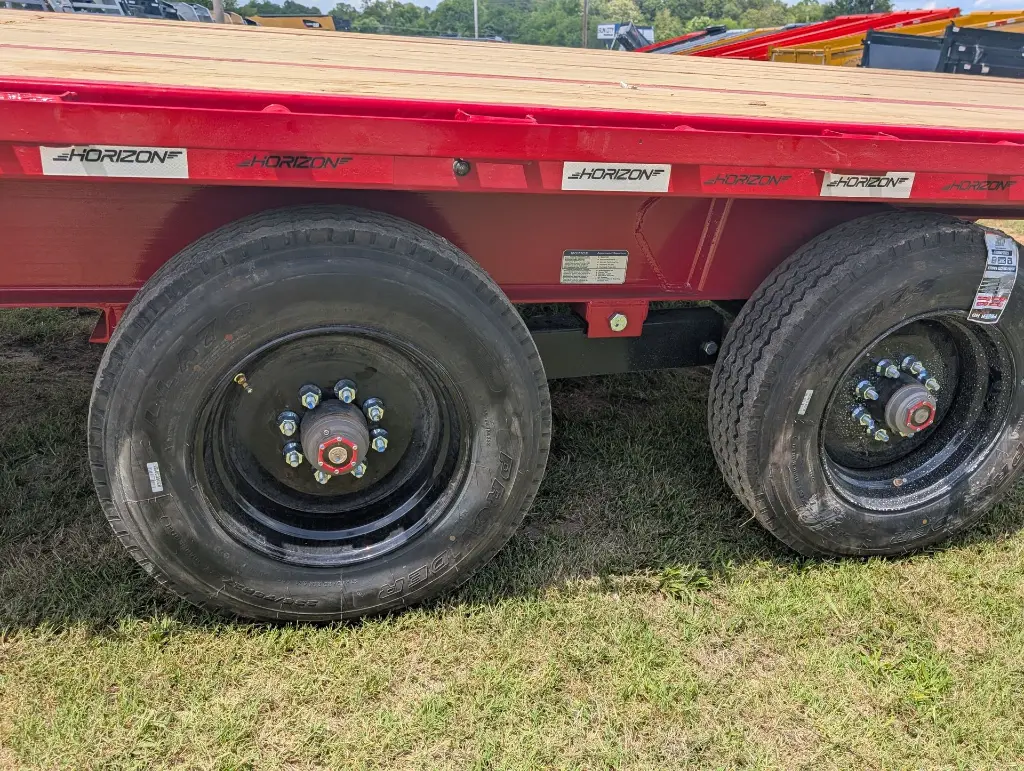

RUNNING GEAR/TIRES
TYPE: RADIAL TIRES
SIZE: ST235/75R17.5
PLY: 18
RATING: 6,005 LBS
RIMS: 17.5" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 10K LIPPERT ELECTRIC BRAKE AUTO ADJUST DUAL OIL BATH SPRING AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: SPRING
AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANTY
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 2 - INTERSTATE 27 DEEP CYCLE BATTERIES
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
