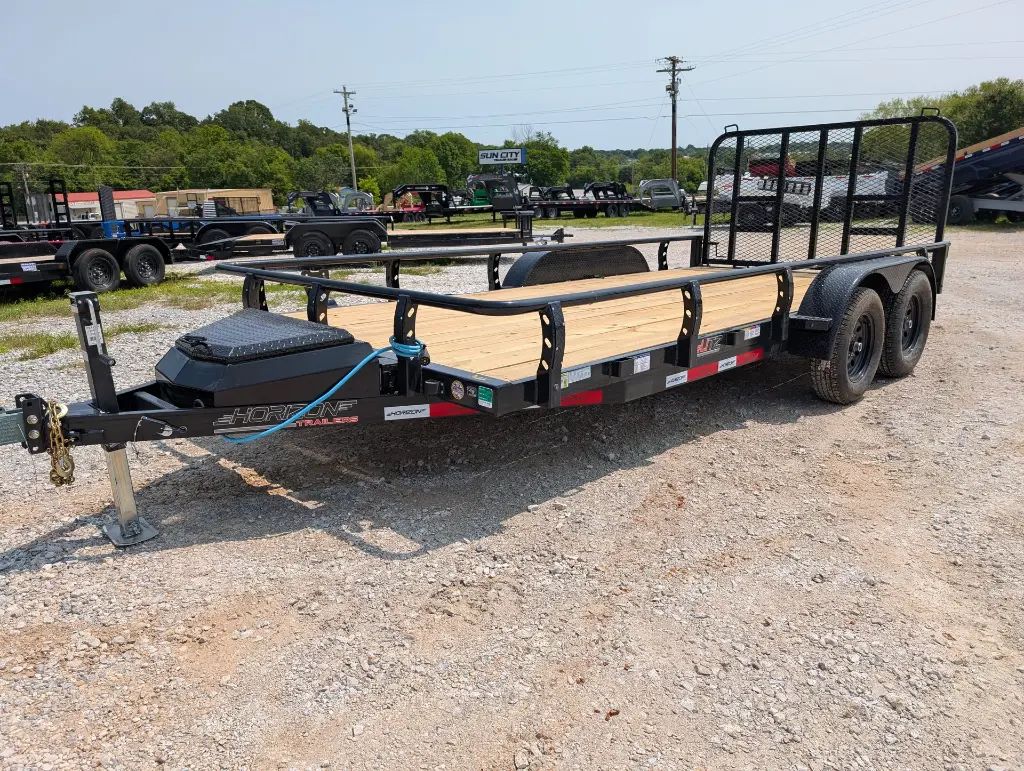

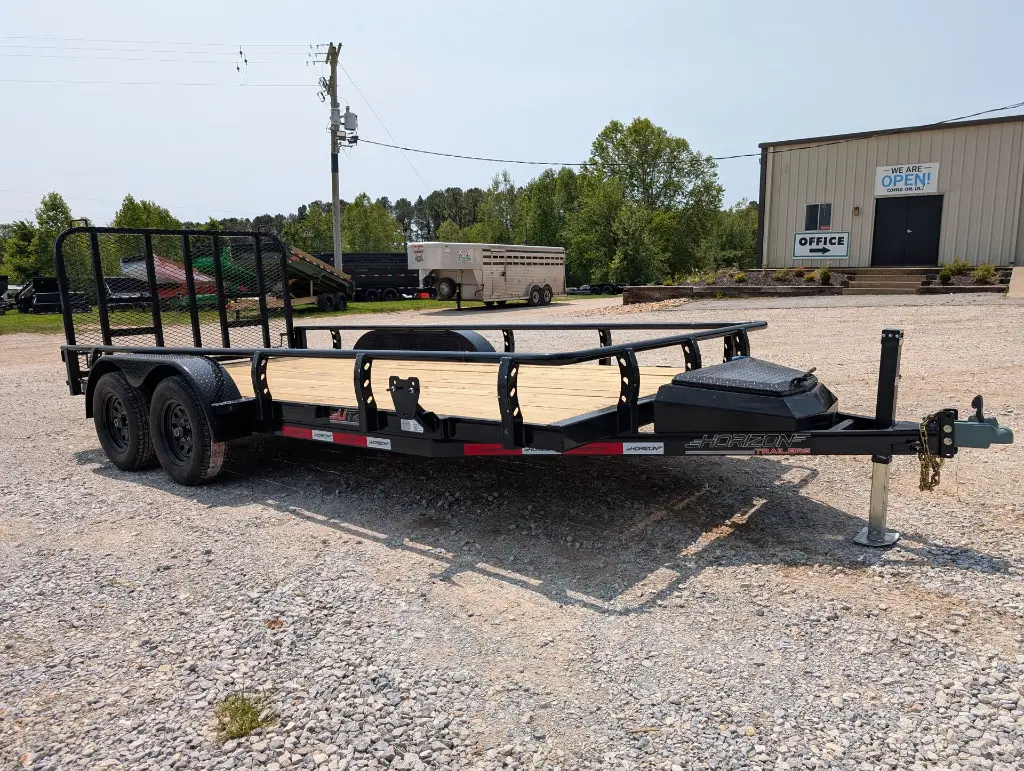

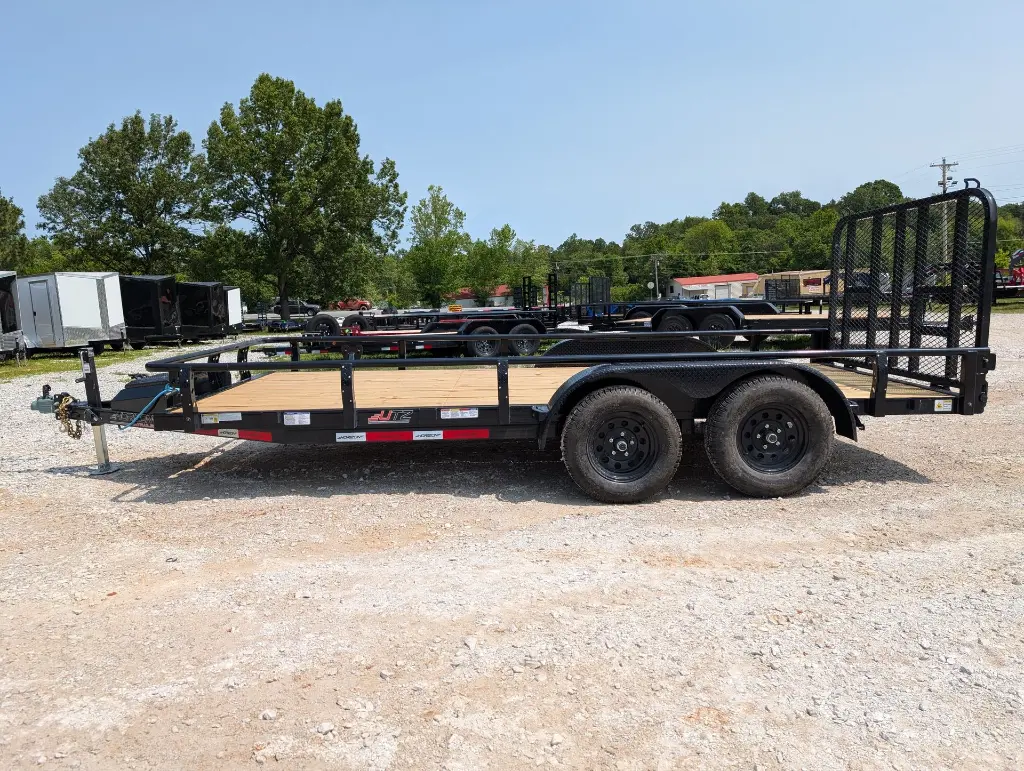

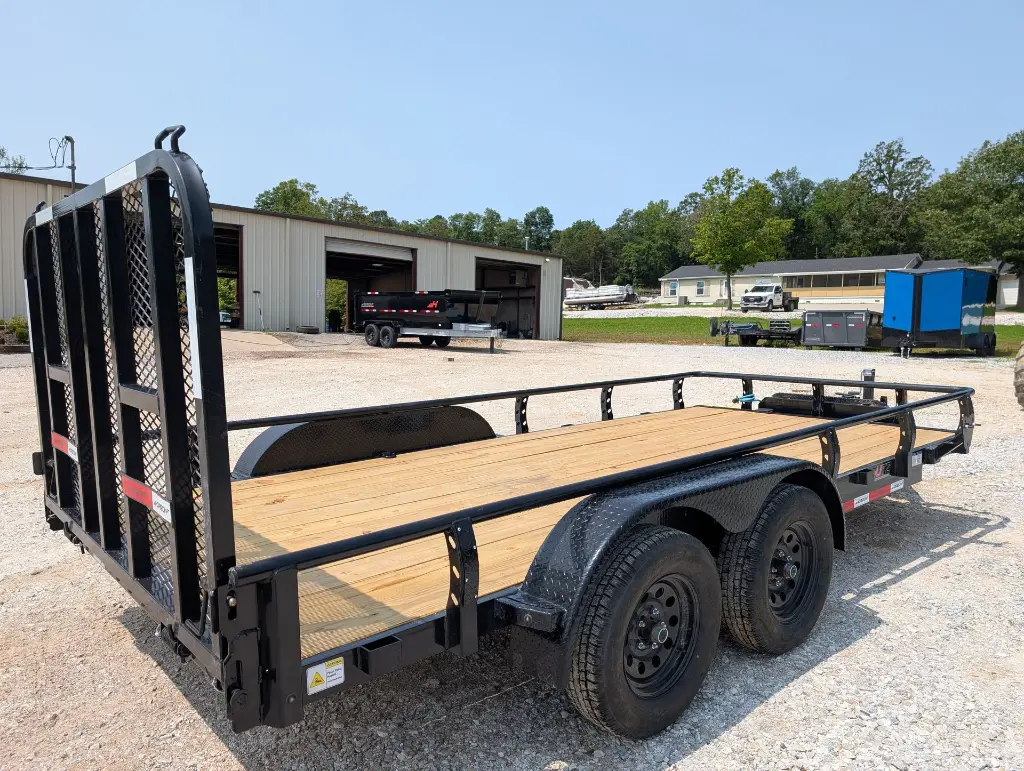

Horizon UTZ7 7' x 16' Tandem Axle Utility Trailer 3.5k
| Stock # | 09295 |
| Año | 2025 |
| Marca | Horizon Trailers |
| Numero de Modelo | UTZ7 16' x 83" |
| Color | Black |
| Longitud del piso | 16' |
| Ancho | 83" |
| GVWR | 7,000 lbs |
| Axle Capacity | 3,500 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7BU1620SR009295
Referencia interna:
09295
Standard Trailer Specs
TRAILER SPECS/DIMENSIONS:
WEIGHT RATING
GVWR:7,600LBS
GAWR: 3,500LBS

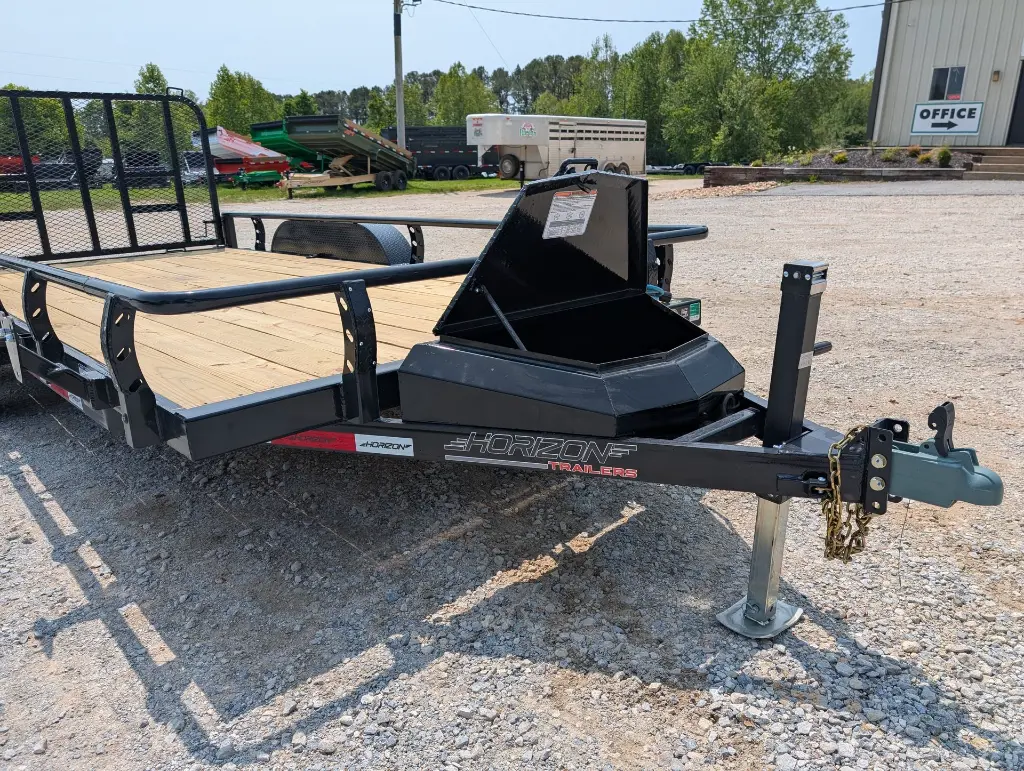

TONGUE
TONGUE: 4” CHANNEL (4.50LBS/FT)
COUPLER: ADJUSTIBLE AUTO LATCH 2” BP COUPLER (10,00LBS)
JACK: 1 SIDE WIND DROP JACK LEG (7,000LBS)
SAFETY CHAINS: ¼” GRADE 70 SAFETY CHAIN W/ CLEVIS HOOK (2 EACH)
SPARE: WELD ON SPARE TIRE MOUNT
CHASSIS
MAIN FRAME: 4” CHANNEL (4.50LBS/FT)
DECK
DECK HEIGHT: 22”
DECK: STRAIGHT DECK
DECK WIDTH: 83”

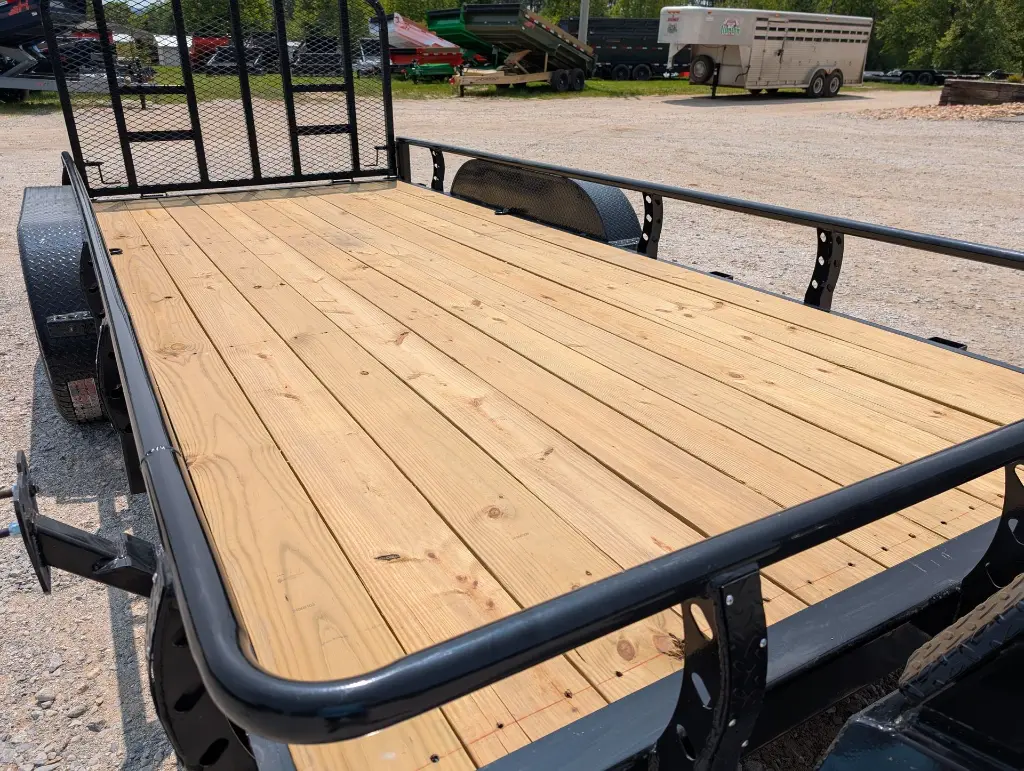

FLOORING: PINE LUMBER FLOOR
FRAME: 4” CHANNEL (4.50LBS/FT)
CROSSMEMBERS: 2” X 3” X 3/16” ANGLE IRON 20” SPACING
D-RINGS: 2 – D-RINGS IN BETWEEN FENDERS
RAILING: REINFORCED 2” 10ga OUND TUBING
STAKE POCKETS: 1.5/8” X 3.5/8” (ID) STAKE POCKETS

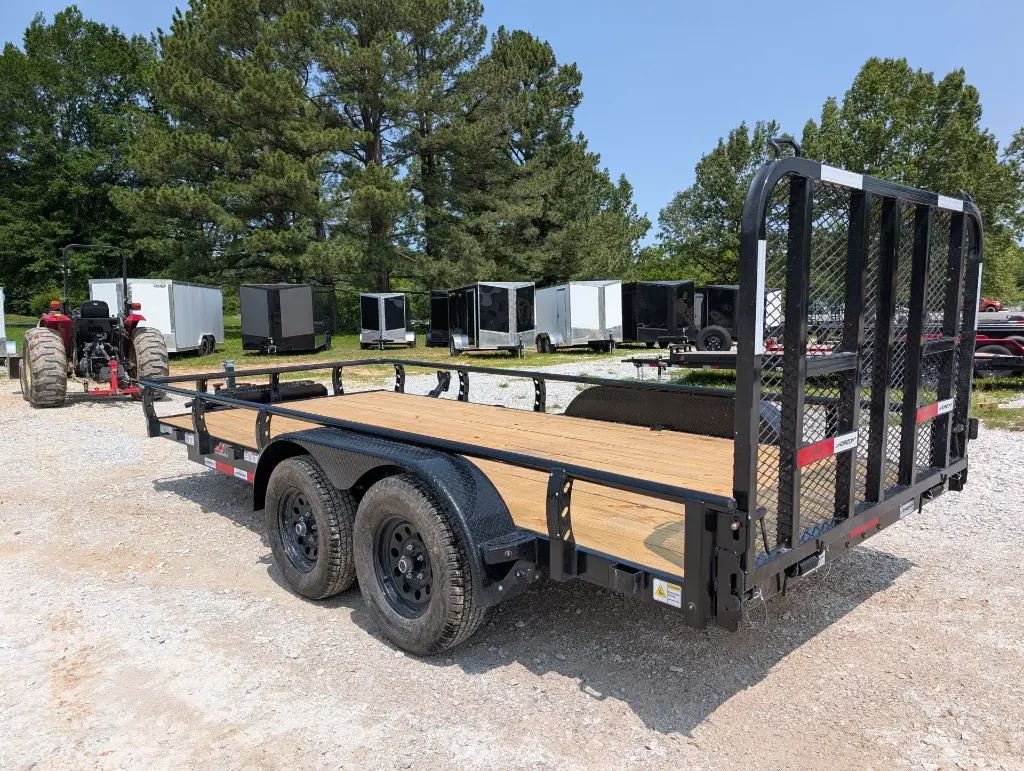

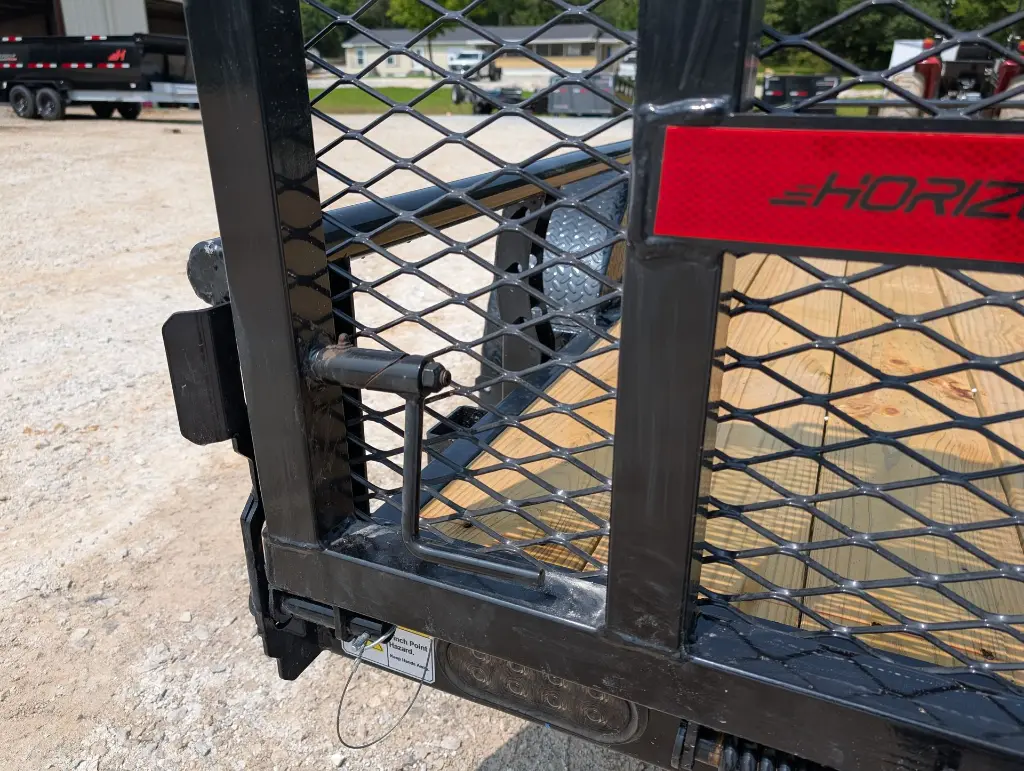

RAMPS: 1 – 4” HIGH RAMP GATE 2” X 2” 11ga TUBE FRAME W/ 10ga MESH COVERING
RUNNING GEAR

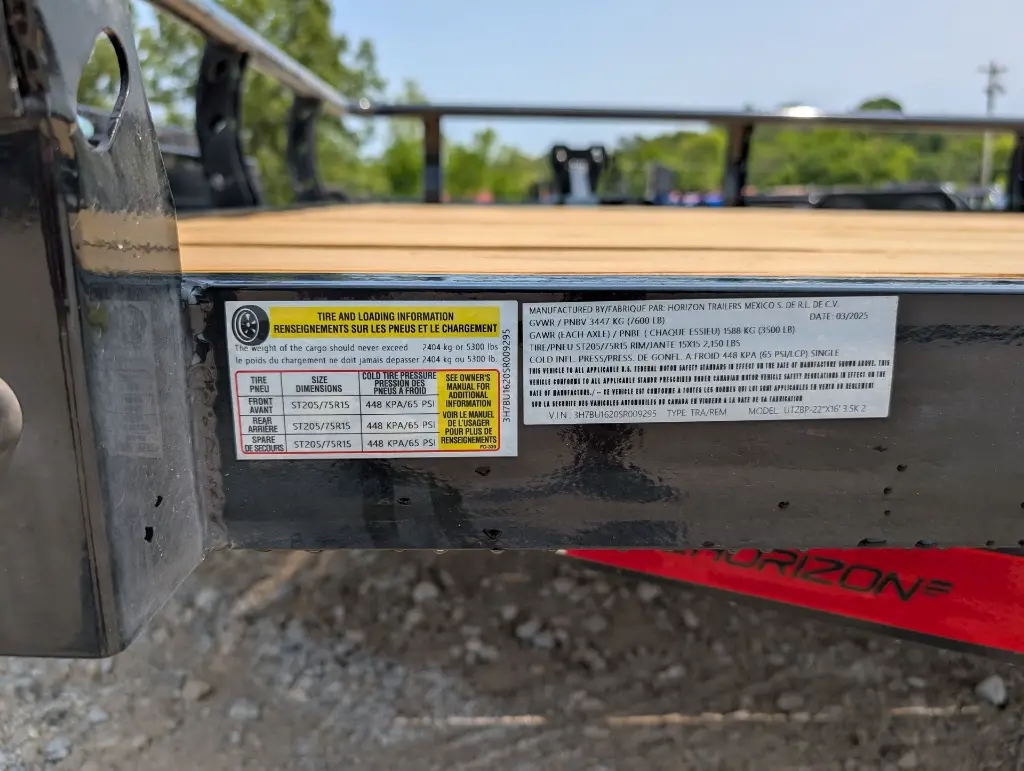

TIRES: (3.5K AXLES) ST205/75R15 6PLY TIRES (1,820LBS)
RIMS: 15” BLACK MOD WHEELS
AXLES: 3.5 LIPPERT ELECTRIC BRAKE EZ LUBE SPRING AXLES
SINGLE AXLE: ELECTRIC BRAKES
TANDEM AXLES: REAR AXLE: ELECTRIC RAKES FRONT AXLE: IDLER (NO BRAKES)
SUSPENSION: SLIPPER SPRING
ELECTRICAL AND LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
FINISH
PAINT: 6 STAGE POWDERCOAT
