Horizon HET 22' Tilt Drive Over Fender Trailer 10K (16'+6')
| Stock # | 08614 |
| Año | 2025 |
| Marca | Horizon Trailers |
| Numero de Modelo | HET 22' x 102" |
| Color | Ash Gray |
| Largo | 22' |
| Ancho | 102" |
| GVWR | 21,000 lbs |
| Cargo Carrying Capacity | 15,655 lbs |
| Unloaded Vehicle Weight | 5,345 lbs |
| Axle Capacity | 10,000 lbs |
| Ubicación | Springdale, AR |
Código de barras:
3H7BT2229SR008614
Referencia interna:
08614
Standard Trailer Specs
DIMENSIONS
DECK LENGTHS: 22'
DECK HEIGHT: 25”
DECK WIDTH: 102”
WEIGHT RATING
GAWR: 10,000 LBS
GVWR: 22,400 LBS
FINISH
PAINT TYPE: POWDERCOAT
PREP: STEEL GRIT BLASTED
WARRANTY
AXLE WARRANTY: 11 YEAR LIPPERT TORSION AXLE WARRANTY
TRAILER WARRANTY: 3 YEAR FRAME / 1 YEAR PARTS WARRANTY
TONGUE
TONGUE TYPE: 60" I-Beam
SPARE: WELD ON SPARE TIRE MOUNT
STORAGE BEHIND NECK: STORAGE BOX
COUPLER
STANDARD COUPLER: ADJUSTABLE 2-5/16" GN COUPLER (30,000 LBS)
JACKS
FRONT JACK: 2 SIDE WIND SPRING LOADED DROP JACK LEGS (12,000 LBS)
TOOLBOX
TOOLBOX: MEGA LOCKABLE TOOLBOX
SAFETY
SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH)
CHASSIS/FRAME
MAIN FRAME: 10" I-BEAM (17 LBS/FT]
DECK/BED
DECK FRAME: 3/16" DIAMOND PLATE
FLOORING: PINE LUMBER FLOOR
CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT] 16" SPACING
DECK HEIGHT: 25"
DECK WIDTH: 83"
WIDTH BETWEEN FENDERS: 82”
D-RINGS: 2 D-RINGS IN BETWEEN FENDERS
TILT DECK LENGTH: 16'
TILT DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME
TILT ANGLE: 15°
SIDES
RUB RAIL: 2" X 3/8" RUB RAIL
STAKE POCKETS: 1,5/8" X 3,5/8" (ID] STAKE POCKETS (SPACED AT 24"]
SPOOLS: 2" X 10GA. PIPE SPOOLS (SPACED AT 24")
FENDERS: 1/4" DIAMOND PLATE DRIVE OVER FENDERS
TILT SYSTEM/HYDRAULICS
SYSTEM: GRAVITY UP / DOWN
CYLINDER: 1-3" X 16" CYLINDER
TANK: LARGE RESERVOIR
VALVE: 3 WAY VALVE CONTROL

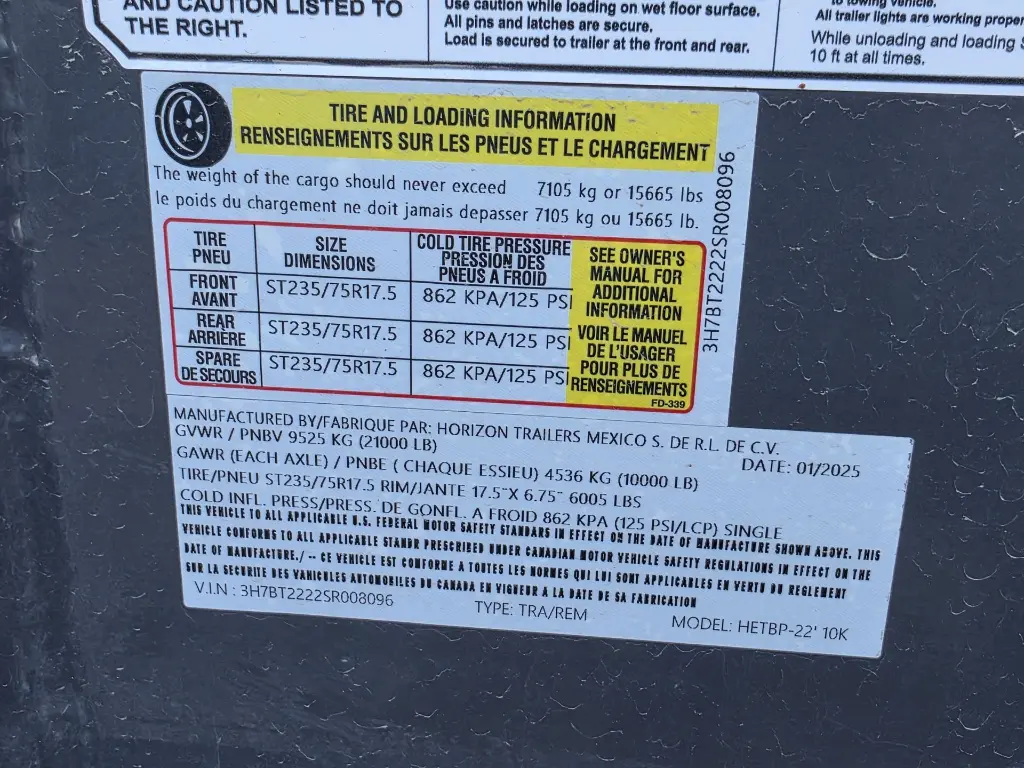

RUNNING GEAR/TIRES
TYPE: RADIAL TIRES
SIZE: ST235/75R17.5, SUPER SINGLE
PLY: 18
RATING: 6,005 LBS
RIMS: 17.5" BLACK MOD WHEELS
SUSPENSION
AXLE TYPE: 10K LIPPERT ELECTRIC BRAKE AUTO ADJUST OIL BATH TORSION AXLES
BOLT PATTERN: 8 ON 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: TORSION
AXLE WARRANTY: 11 YEAR LIPPERT TORSION AXLE WARRANTY
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BREAKAWAY SYSTEM: 2382 BRIGHTWAY GROUP ELECTRIC BREAKAWAY KIT
WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)
FRAME WIRING: DOUBLE INSULATED WIRING HARNESS
LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
SAFETY
REFLECTIVE TAPE: 3M DOT COMPLIANT REFLECTIVE TAPE
