Horizon RDZ 16' Bumper Pull Rolloff 7K
| Stock # | 11562 |
| Año | 2026 |
| Marca | Horizon Trailers |
| Numero de Modelo | RDZ 16' x 61" BP |
| Color | Black |
| Largo | 16' |
| Ancho | 83" |
| Ubicación | Springdale, AR, Springdale, AR |
| GVWR | 15,260 lbs |
| Axle Capacity | 7,000 lbs |
Código de barras:
3H7BR1623TR011562
Referencia interna:
11562
Standard Trailer Specs
DIMENSIONS
LENGTH: 16'
DECK WIDTH: 61"
DECK HEIGHT: 30"
WEIGHT RATINGS
GAWR: 7,000 lbs
GVWR: 15,260 lbs
ESTIMATE DRY WEIGHT: 3,532 lbs
ESTIMATE PAYLOAD: 11,728 lbs
ESTIMATE TONGUE WEIGHT: 800 lbs - 900 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE BP
TYPE: 10" I-Beam (12 lbs/ft)
LENGTH: 60"
COUPLER
STANDARD COUPLER BP: Adjustable Demco EZ Latch 2-5/16" BP Coupler (21,000 lbs)
JACKS
FRONT JACK BP: 1 Side Wind Drop Jack Leg (12,000 lbs)
TOOLBOX

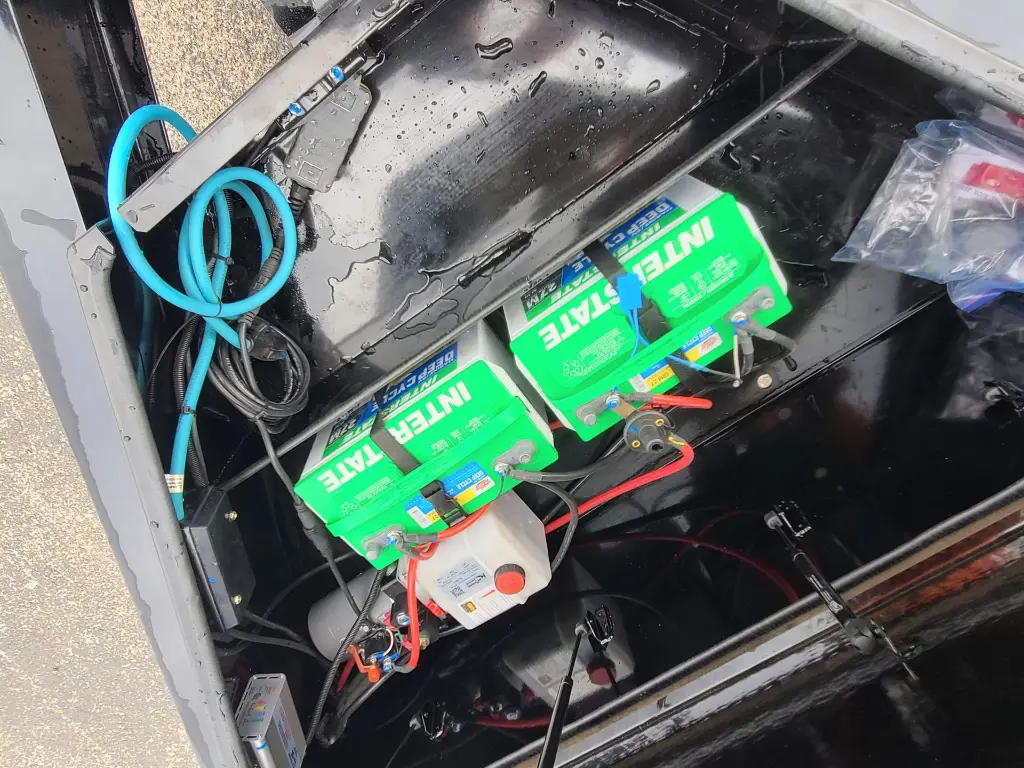

TOOLBOX BP: Mega Lockable Toolbox BP (Houses Battery and Pump)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 10" I-Beam (12 lbs/ft)
DECK/BED
DECK WIDTH: 61"
DECK HEIGHT: 30"
FRAME: 2" x 3" x 7ga. Tubing Bed Frame
CROSSMEMBERS: 2" x 3" x 7ga. Crossmembers
LOADING ANGLE: 55°

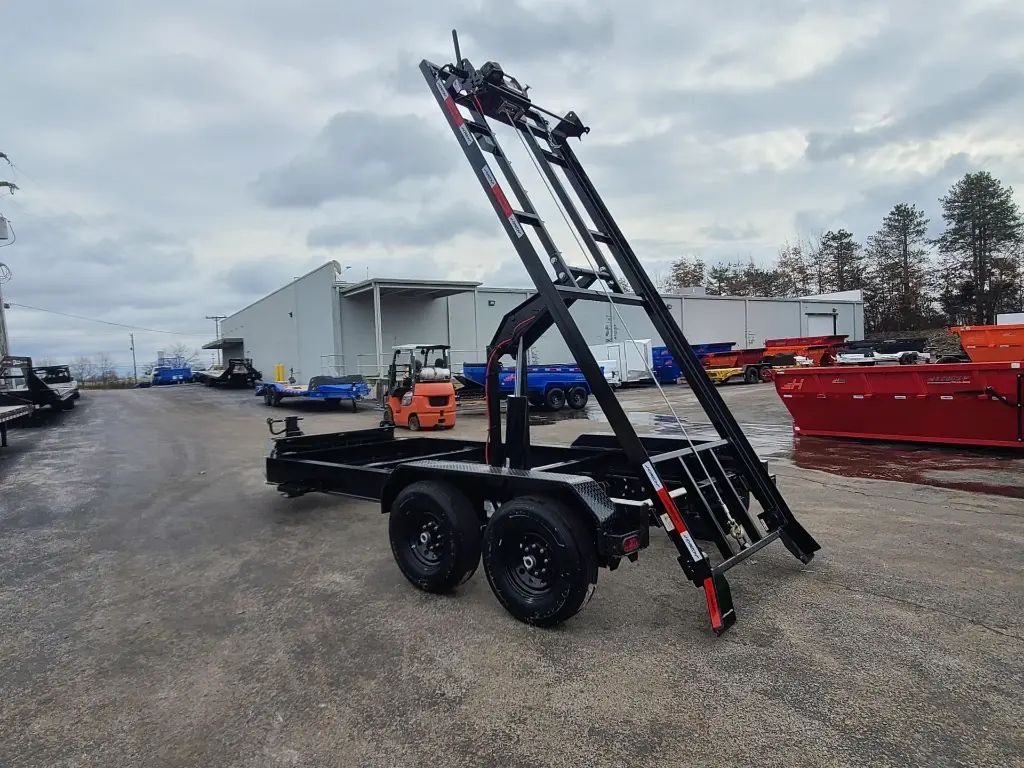

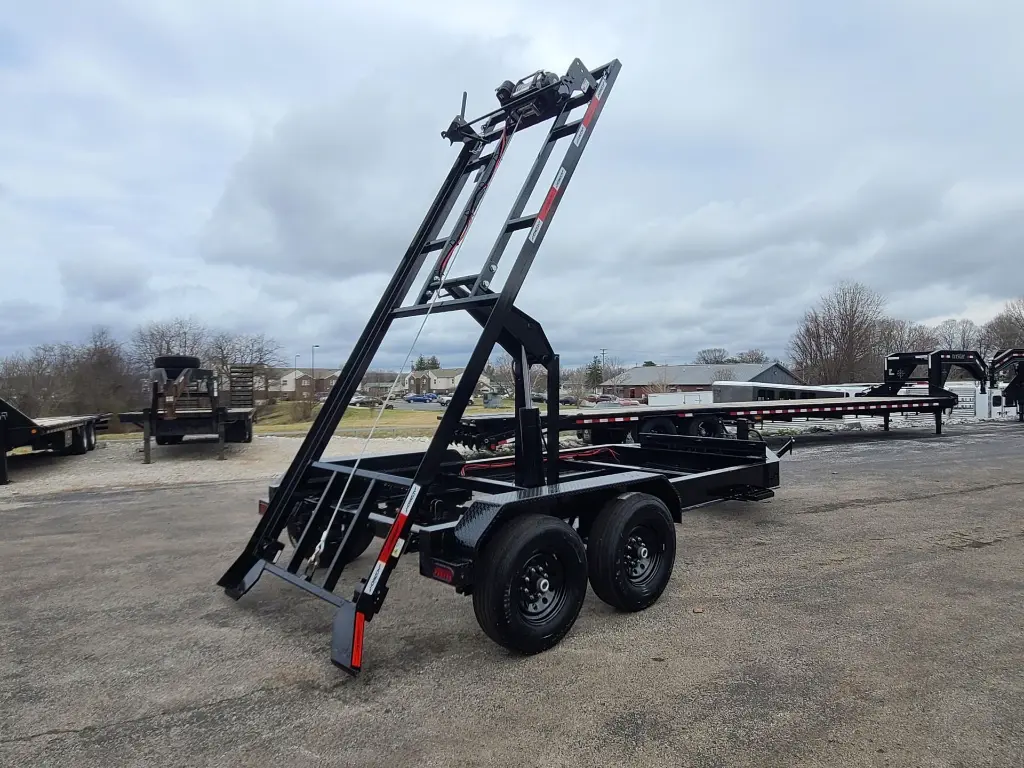

DUMP ANGLE: 40°
SIDES
TYPE: 3" x 4" x 1/4" Angle Iron
FENDERS: 14ga. Diamond Plate Steel Fenders
SAFETY
SAFETY CHAINS FOR ROLL OFF: (2) 1/4" 30 Grade Chain w/Clevis Hook
LIFT SYSTEM/HYDRAULICS
SYSTEM: Hydraulic - Power Up / Gravity Down
PUMP: KTI 12V Hydraulic Pump

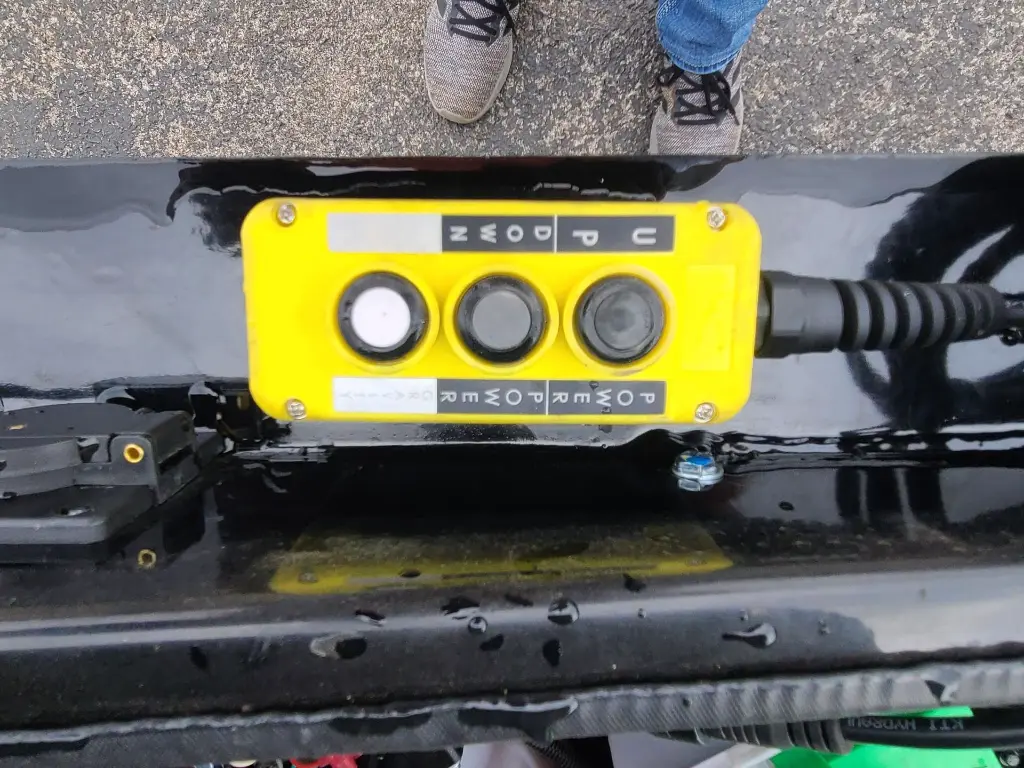

CONTROLLER: 14' Control Cable
DECK LIFT
CYLINDER: 6" x 21" Single Push Cylinder
HOIST CAPACITY: 20,000 lbs
WINCH

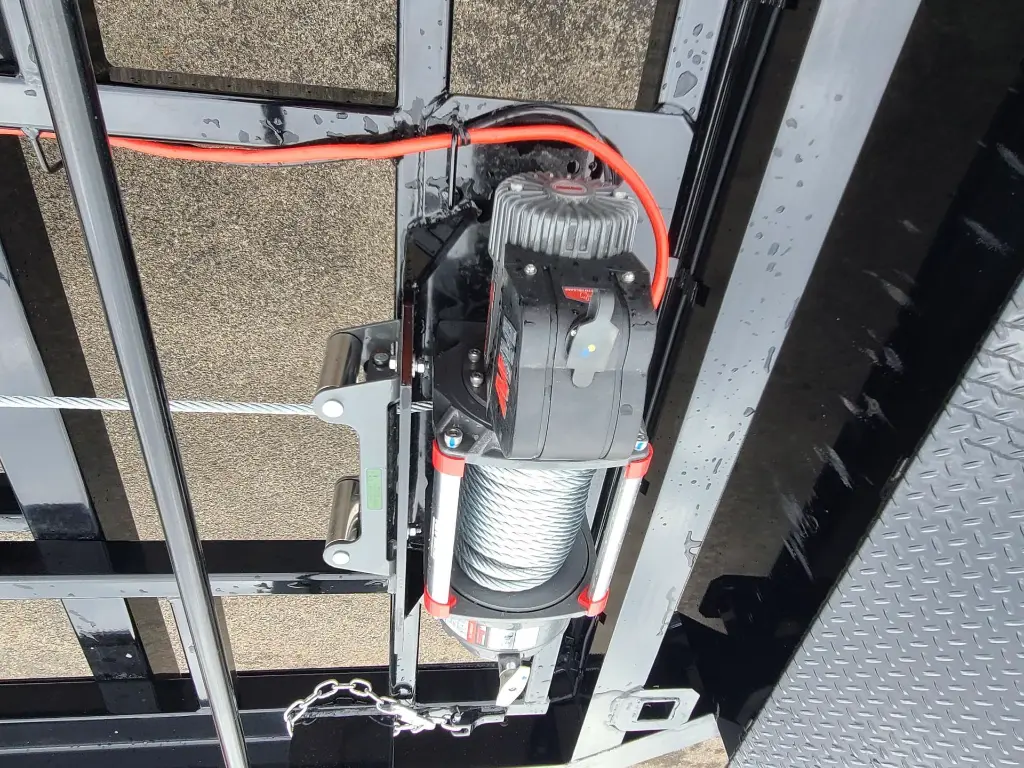

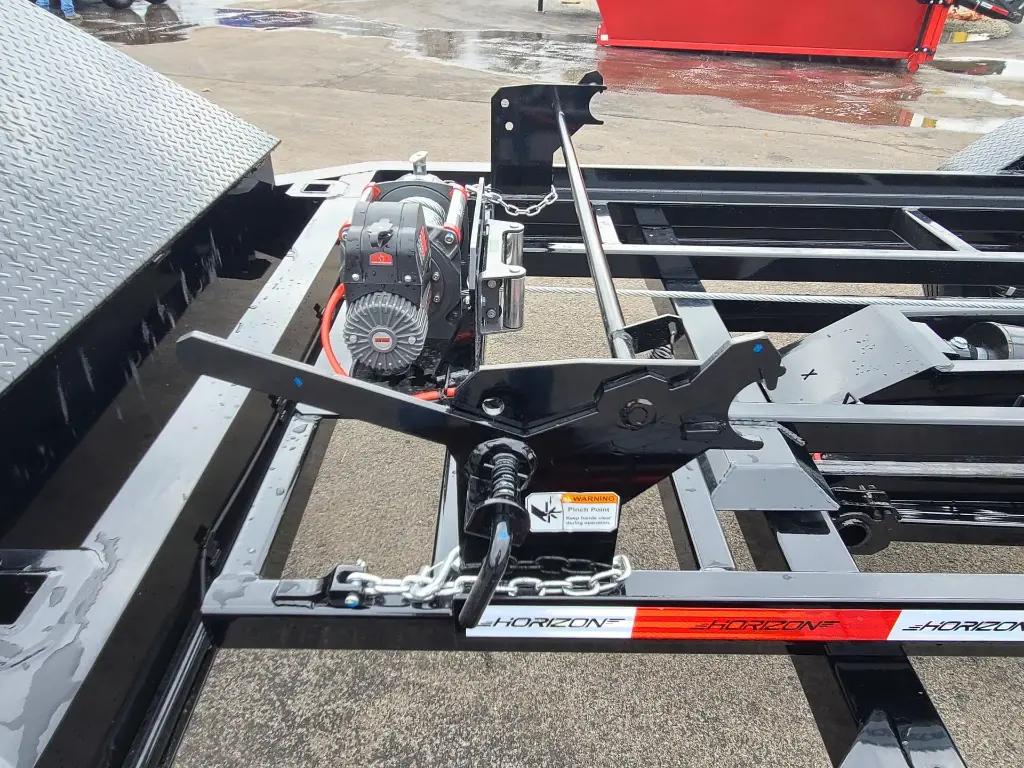

WINCH: 17.5k Steel Cable Warrior Winch
WINCH CONTROLLER: 12' Control Cable and Wireless Controller
RUNNING GEAR/TIRES
TYPE: Radial Tires
SIZE: ST235/80R16
PLY: 10
RATING: 3,520 lbs
RIMS: 16" Black Mod Wheels
SUSPENSION
AXLE TYPE: 2 - 7k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 2 - Interstate 27 Deep Cycle Batteries
CHARGING SYSTEM: 110V Integrated Trickle Charger
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
