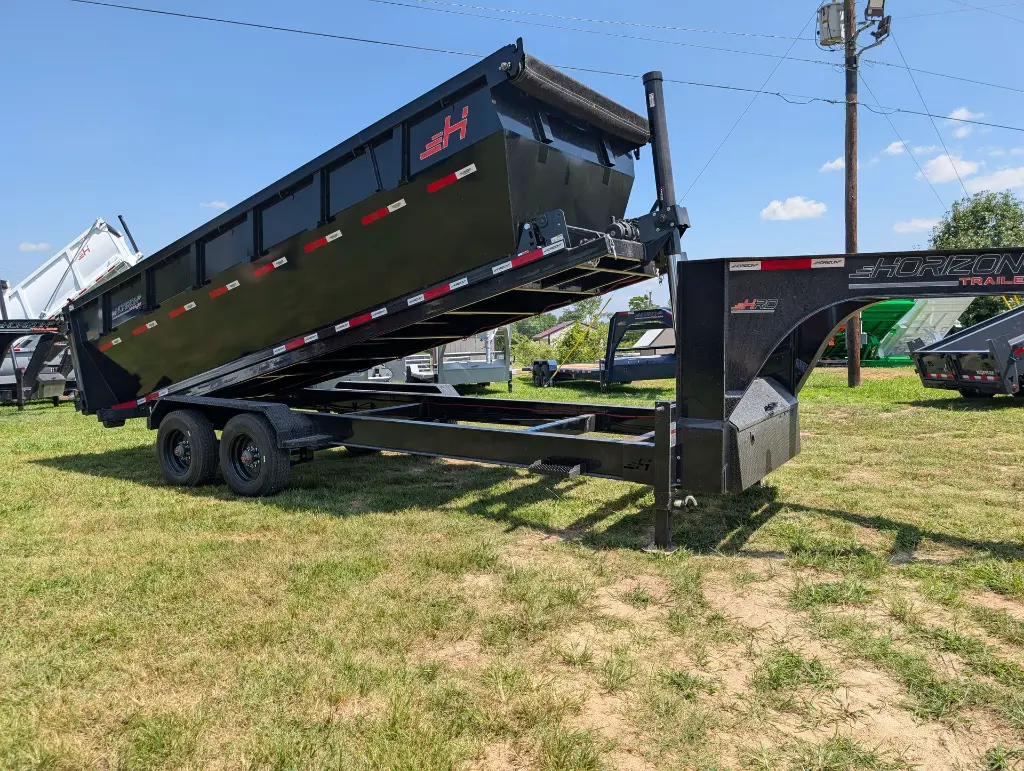

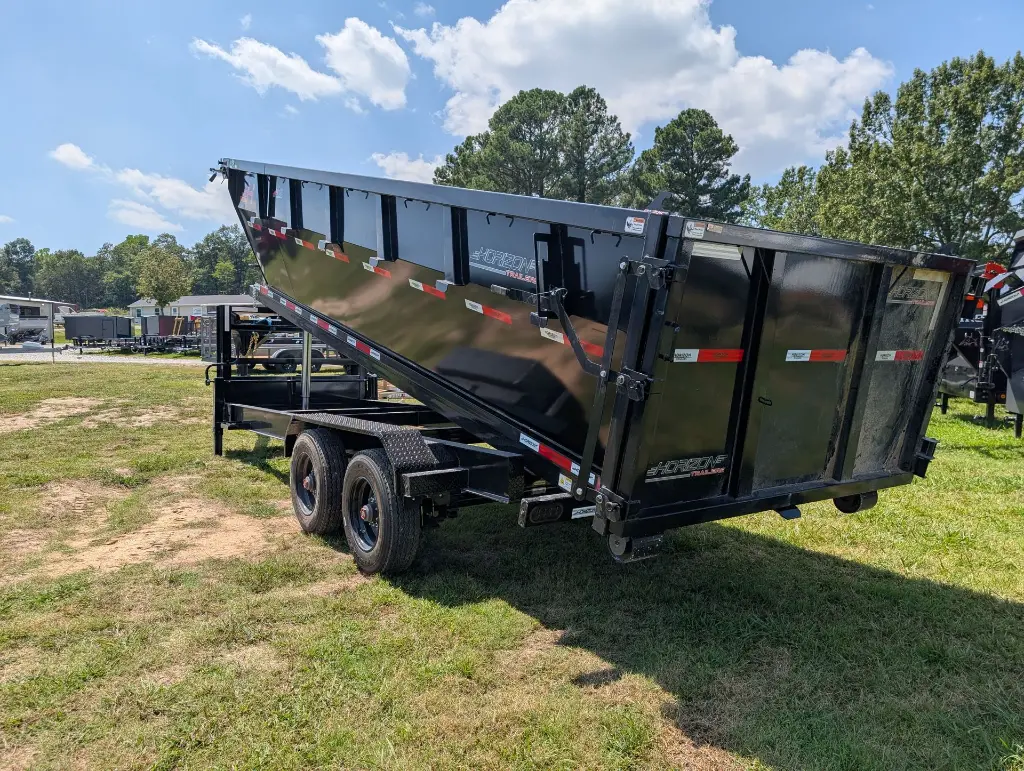

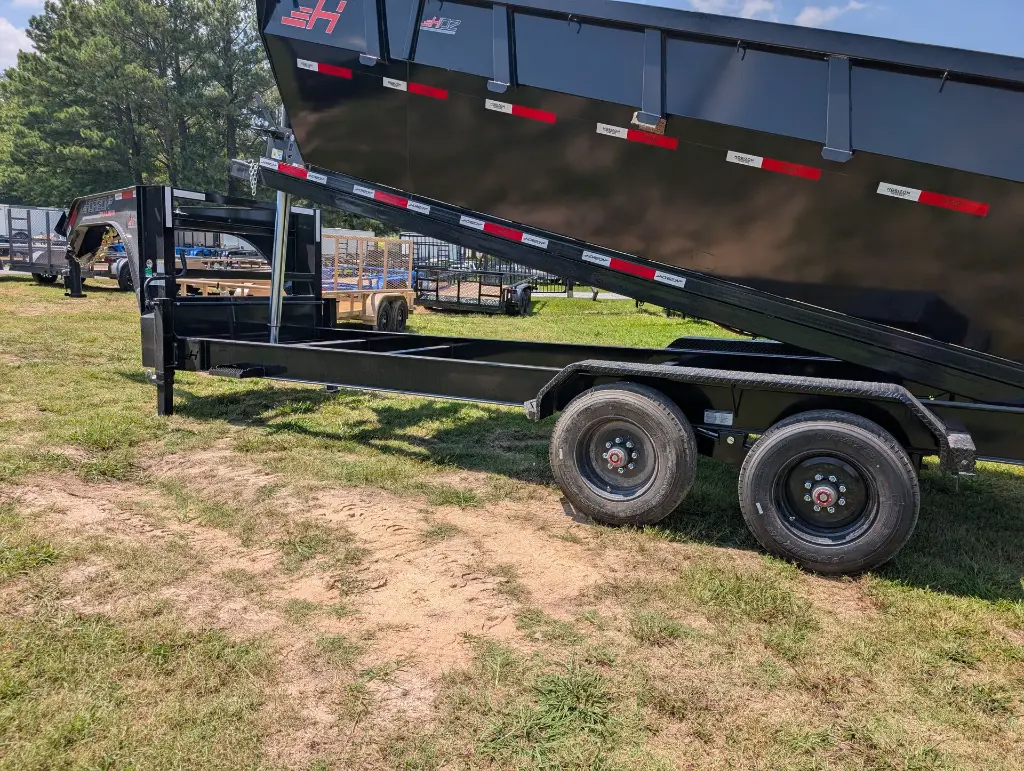

Horizon HRD 20' Gooseneck Roll Off
| Stock # | 11179 |
| Year | 2026 |
| Manufacturer | Horizon Trailers |
| Model Number | HDR 20' x 61" |
| Color | Black |
| Floor Length | 20' |
| Width | 61" |
| GVWR | 22,400 lbs |
| Axle Capacity | 10,000 lbs |
| Location | Springdale, AR |
Barcode:
3H7GR2029TR011179
Internal Reference:
11179
TRAILER SPECS/DIMENSIONS
Bins Sold Separately
GOOSENECK:
LENGTH: 20'
DECK WIDTH: 61"
DECK HEIGHT: 30"
WEIGHT RATING
GAWR: 10,000 lbs
GVWR : 24,000 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
STYLE: 2 Tone Colors Available, Chassis / Deck
WARRANTY
AXLE WARRANTY: 6 Year Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE GN:
TYPE: 10" I-Beam (17 lbs/ft)
LENGTH: 98" (From Behind Riser)
HEIGHT: 70" (From Underneath Neck)
SPARE: Weld On Spare Tire Mount
COUPLER
STANDARD COUPLER GOOSENECK: Adjustable 2-5/16" GN Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
TOOLBOX

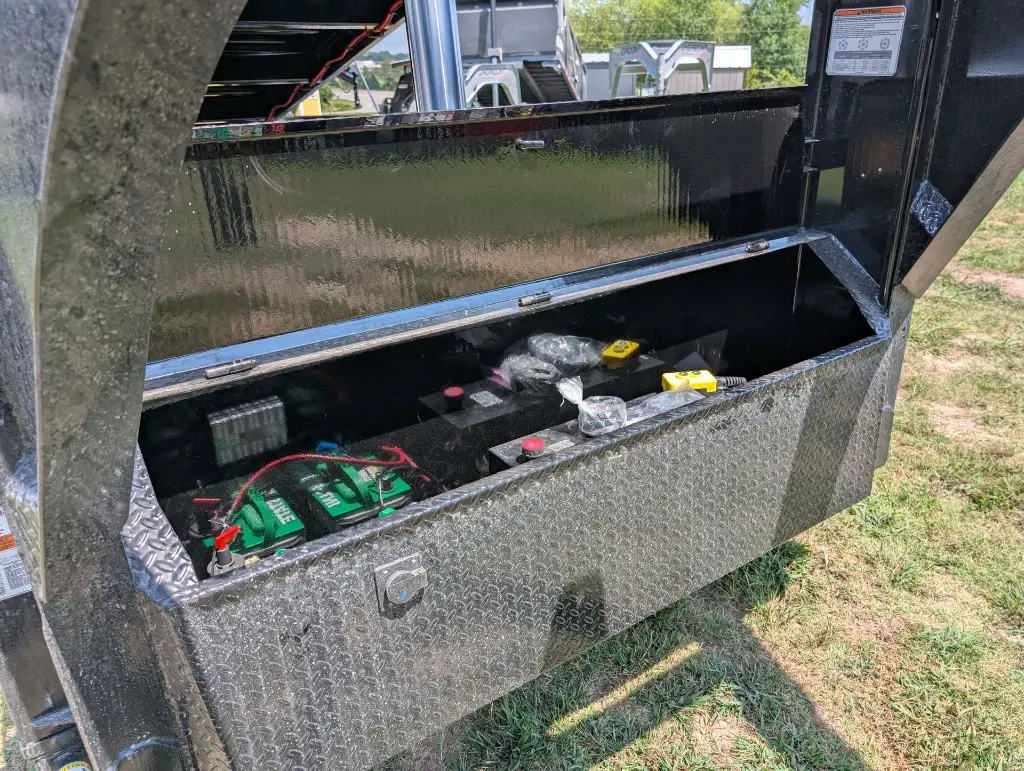

TOOLBOX GN: Lockable Toolbox (Houses Batteries and Pump)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 10" I-Beam (17 lbs/ft)
STEPS: Side Step On Both Sides
DECK/BED
DECK HEIGHT: 30"

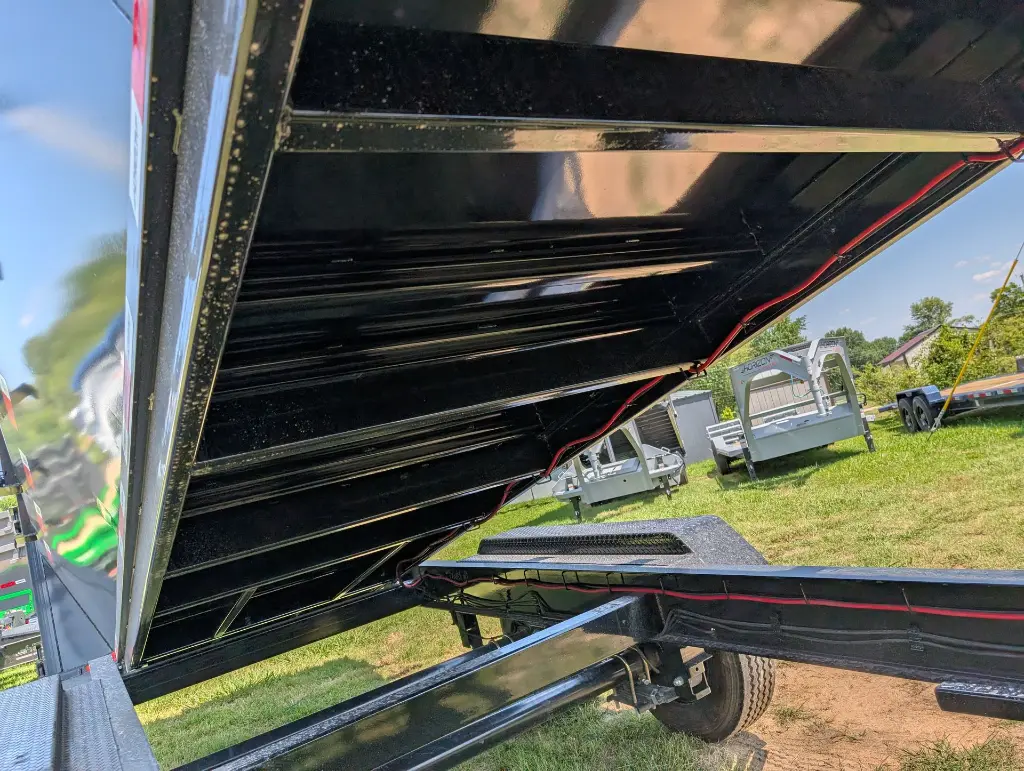

FRAME: 2" x 5" x 7ga. Tubing Bed Frame
CROSSMEMBERS: 2" x 5" x 7ga. Crossmembers
LOADING ANGLE: 60°
DUMP ANGLE: 55°
BOTTOM RAIL DECK WIDTH : 61"
SIDES
TYPE: 3" x 4" x 3/8" Angle Iron
FENDERS: 14ga. Diamond Plate Steel Fenders
SAFETY
SAFETY CHAINS FOR ROLL OFF: (2) 1/4" 30 Grade Chain w/Clevis Hook
LIFT SYSTEM/HYDRAULICS
HOIST SYSTEM: 3 Button Hydraulic - Power Up & Gravity Down
PUMP: KTI 12V Hydraulic Pump
CONTROLLER: 14' Control Cable
20' DECK LIFT
CYLINDER: 3 Stage Telescopic
HOIST CAPACITY: 20,000 lbs
HOIST CAPACITY: 12 Ton
WINCH

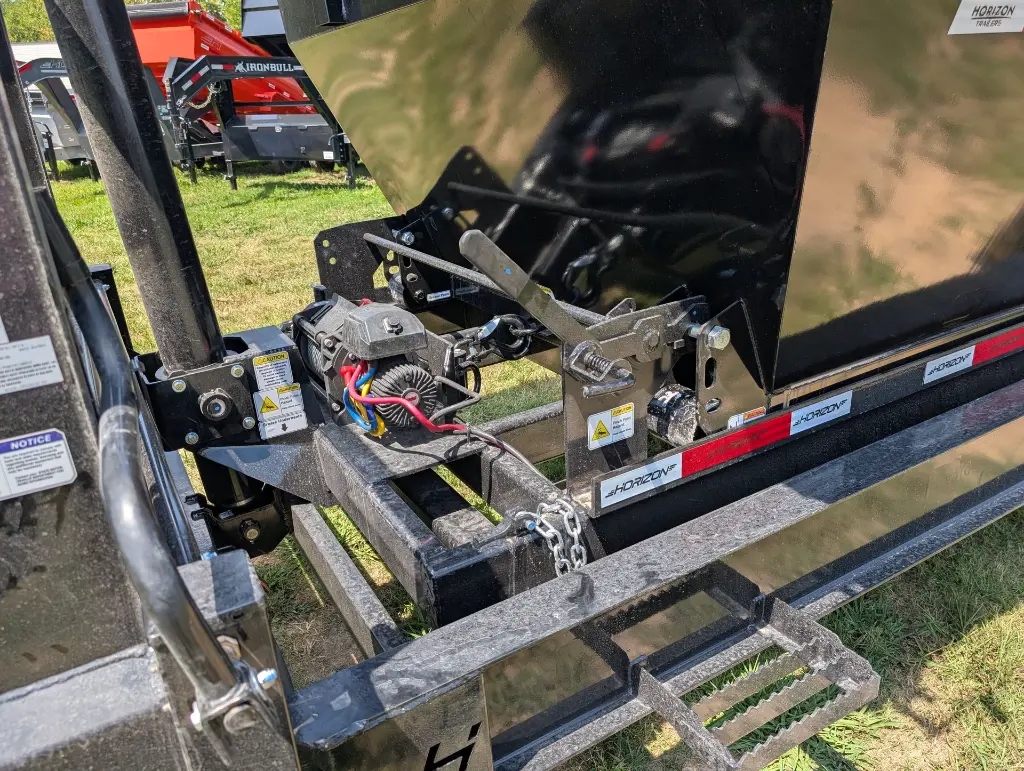

WINCH: 20k Steel Cable Warrior Winch
WINCH CONTROLLER: 12' Control Cable and Wireless Controller
RUNNING GEAR/TIRES

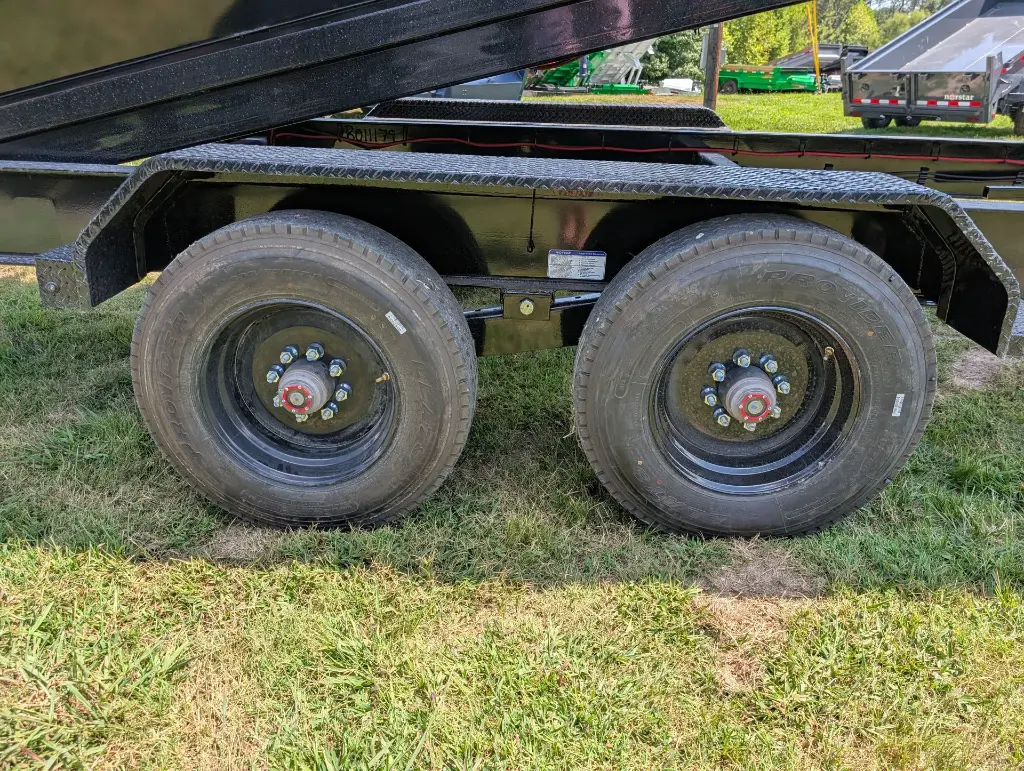

TYPE: Radial Tires
SIZE: ST235/75R17.5, Super Single
PLY: 18
RATING: 6,005 lbs
RIMS: 17.5" Black Mod Wheels
SUSPENSION

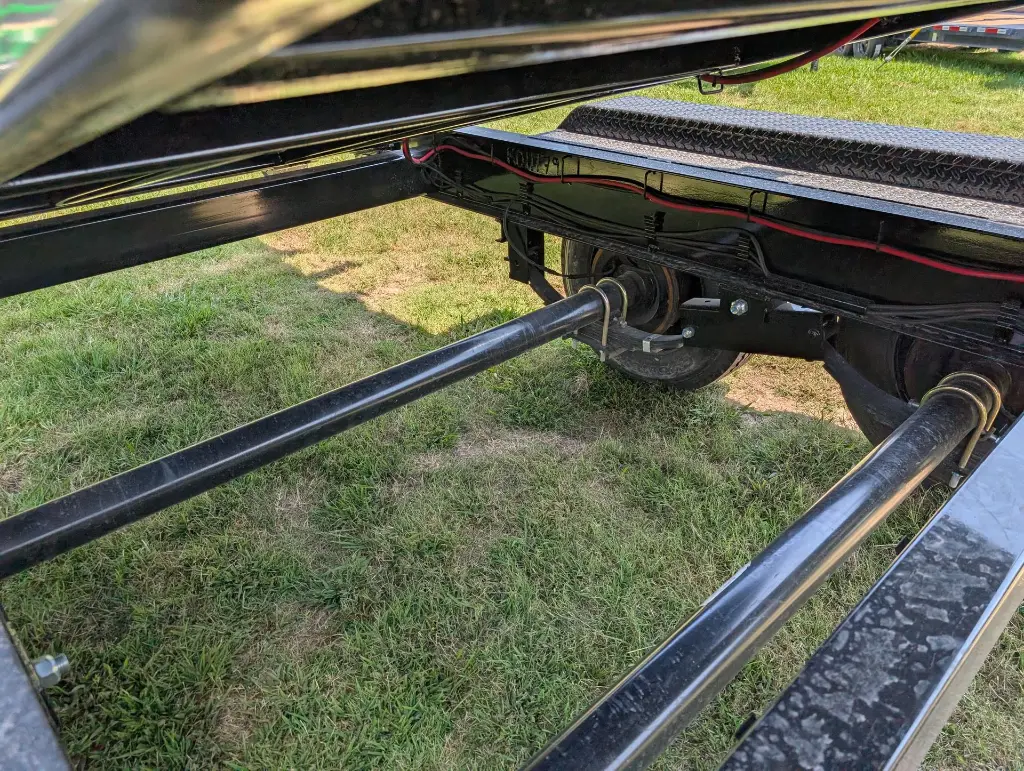

AXLE TYPE: 2 - 10k Electric Brake Super Single Oil Bath Spring Axles
BOLT PATTERN: 8 On 6.5"
AXLE COUNT: 2
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Spring Axle Warranty
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 2 - Interstate 27 Deep Cycle Batteries
CHARGING SYSTEM: 110V Integrated Trickle Charger
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape DOT Approved Tecniq LED Lights
