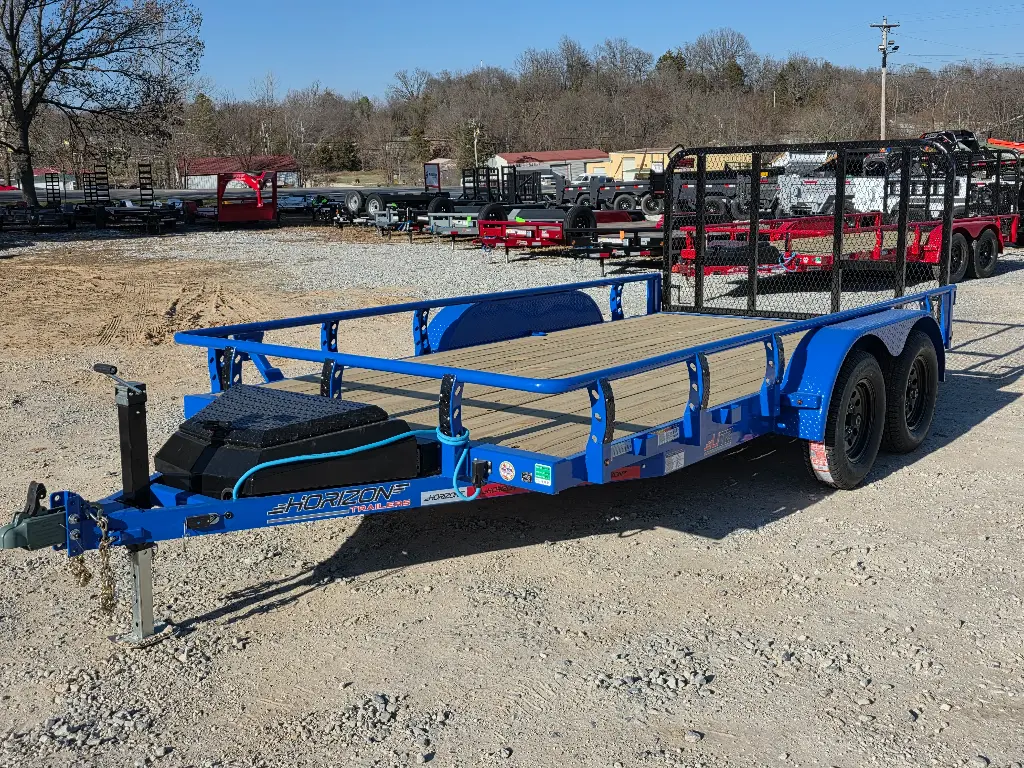

Horizon UTZ7 7' x 14' Tandem Axle Utility Trailer 3.5k
| Stock # | 08563 |
| Year | 2025 |
| Manufacturer | Horizon Trailers |
| Model Number | UTZ7 14' x 83" |
| Color | Blue |
| Floor Length | 14' |
| Width | 83" |
| GVWR | 7,000 lbs |
| Axle Capacity | 3,500 lbs |
| Location | Springdale, AR |
Barcode:
3H7BU1421SR008563
Internal Reference:
08563
Standard Trailer Specs
TRAILER SPECS/DIMENSIONS:
WEIGHT RATING
GVWR: 7,600LBS
GAWR: 3,500LBS
TONGUE
TONGUE: 4” CHANNEL (4.50LBS/FT)
COUPLER: ADJUSTIBLE AUTO LATCH 2” BP COUPLER (10,00LBS)
JACK: 1 SIDE WIND DROP JACK LEG (7,000LBS)
SAFETY CHAINS: ¼” GRADE 70 SAFETY CHAIN W/ CLEVIS HOOK (2 EACH)
SPARE: WELD ON SPARE TIRE MOUNT
CHASSIS
MAIN FRAME: 4” CHANNEL (4.50LBS/FT)
DECK
DECK HEIGHT: 22”
DECK: STRAIGHT DECK
DECK WIDTH: 83”
FLOORING: PINE LUMBER FLOOR
FRAME: 4” CHANNEL (4.50LBS/FT)
CROSSMEMBERS: 2” X 3” X 3/16” ANGLE IRON 20” SPACING
D-RINGS: 2 – D-RINGS IN BETWEEN FENDERS
RAILING: REINFORCED 2” 10ga OUND TUBING
STAKE POCKETS: 1.5/8” X 3.5/8” (ID) STAKE POCKETS
RAMPS: 1 – 4” HIGH RAMP GATE 2” X 2” 11ga TUBE FRAME W/ 10ga MESH COVERING
RUNNING GEAR
TIRES: (3.5K AXLES) ST205/75R15 6PLY TIRES (1,820LBS)
RIMS: 15” BLACK MOD WHEELS
AXLES: 3.5 LIPPERT ELECTRIC BRAKE EZ LUBE SPRING AXLES
SINGLE AXLE: ELECTRIC BRAKES
TANDEM AXLES: REAR AXLE: ELECTRIC RAKES FRONT AXLE: IDLER (NO BRAKES)
SUSPENSION: SLIPPER SPRING
ELECTRICAL AND LIGHTING
LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
FINISH
PAINT: 6 STAGE POWDERCOAT
