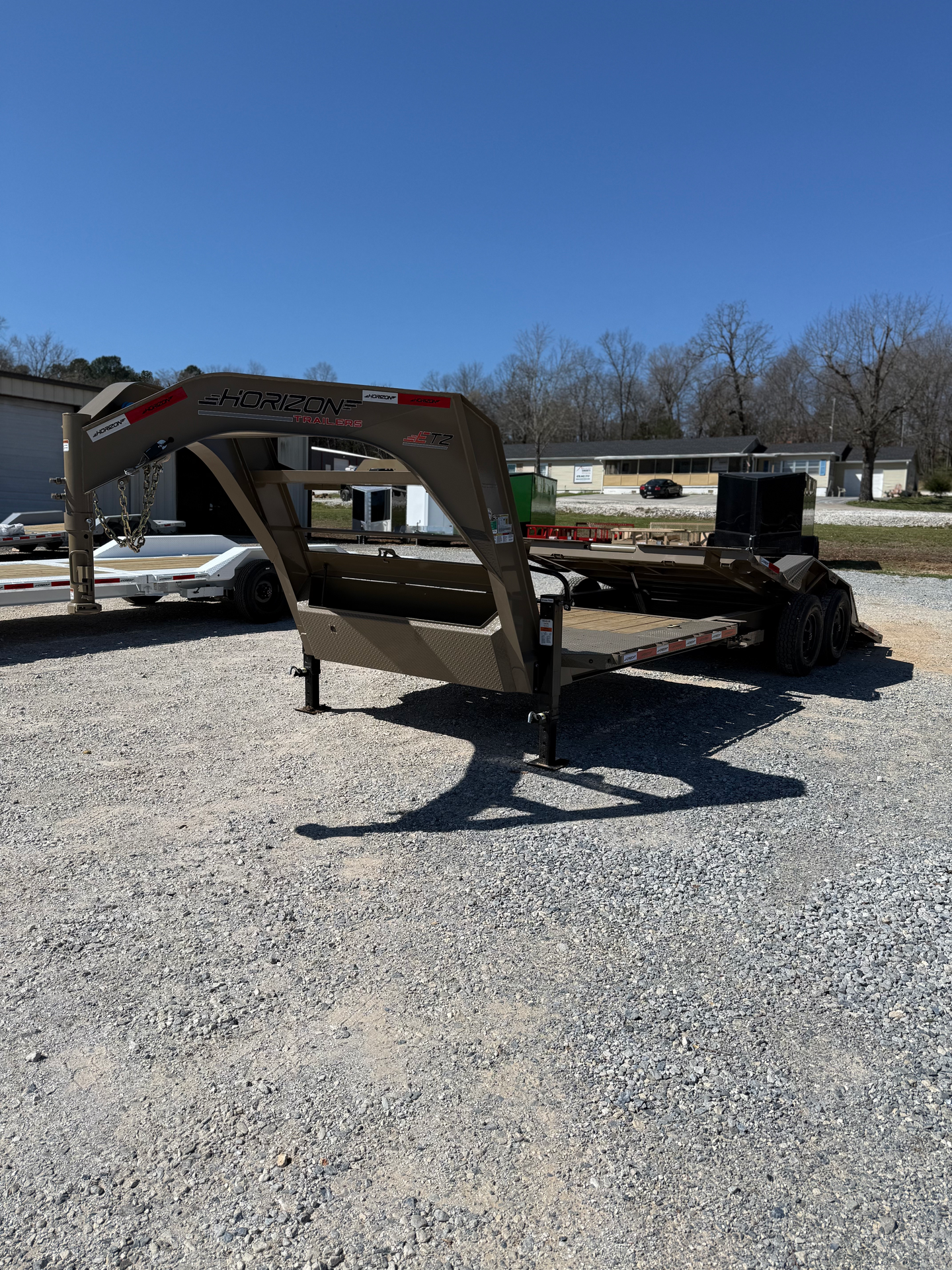

Horizon ETZ 24' Tilt Drive Over Fender Goosneck Trailer 8K (16'+8')

DIMENSIONS

LENGTH: 24'

DECK WIDTH: 102"

DECK HEIGHT: 22"

WEIGHT RATINGS

GAWR: 8,000 lbs

PAINT TYPE: Powdercoat

PREP: Steel Grit Blasted

WARRANTY

AXLE WARRANTY: 6 Year Dexter Torsion Axle Warranty

TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty

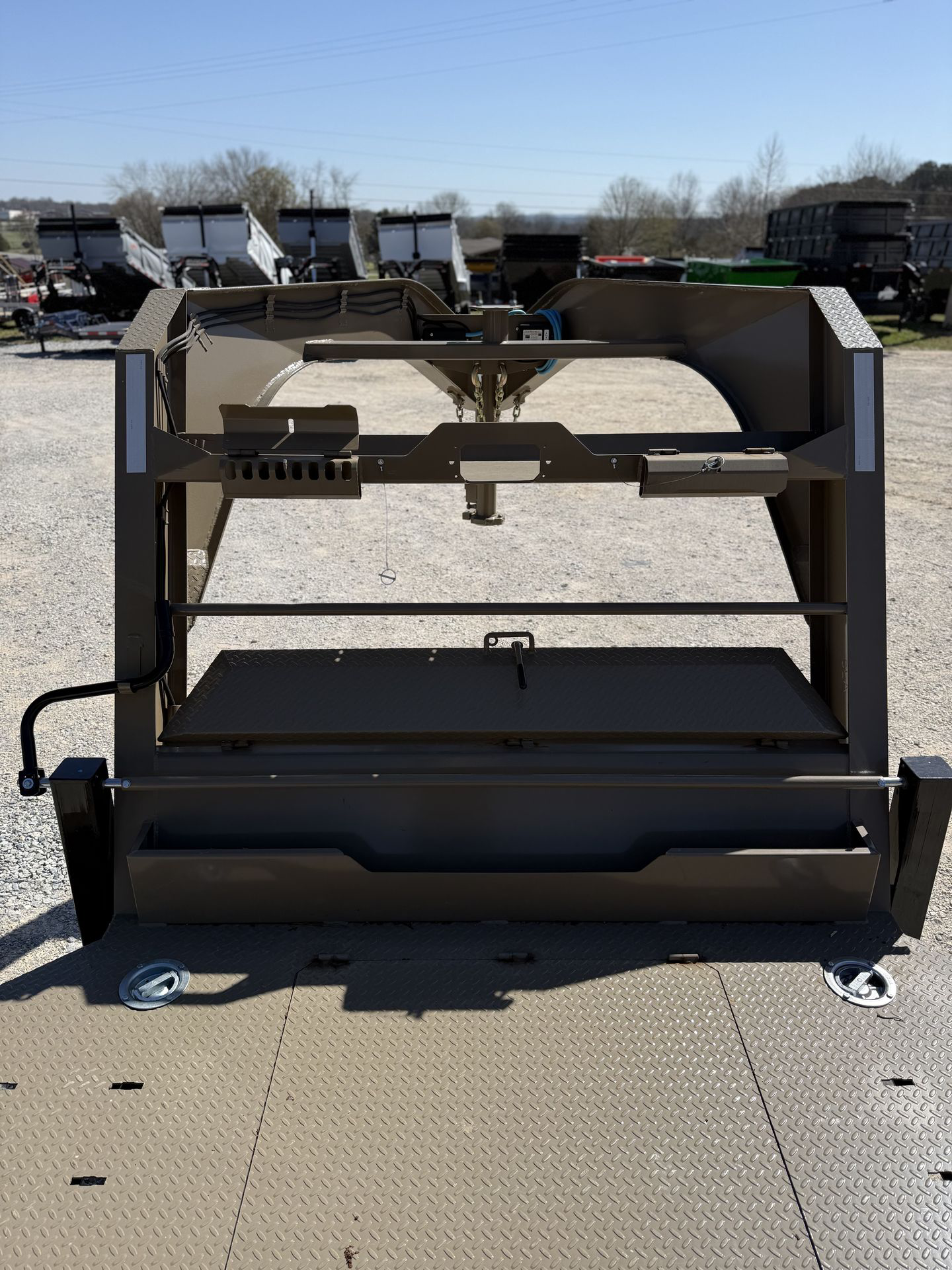

TONGUE

TONGUE TYPE: 10" Engineered I-Beam

SPARE: Weld On Spare Tire Mount

STANDARD COUPLER: Adjustable 2-5/16" BP Coupler (30,000 lbs)

FRONT JACK: 2 Side Wind Spring Loaded Drop Leg Jacks (12,000 lbs)

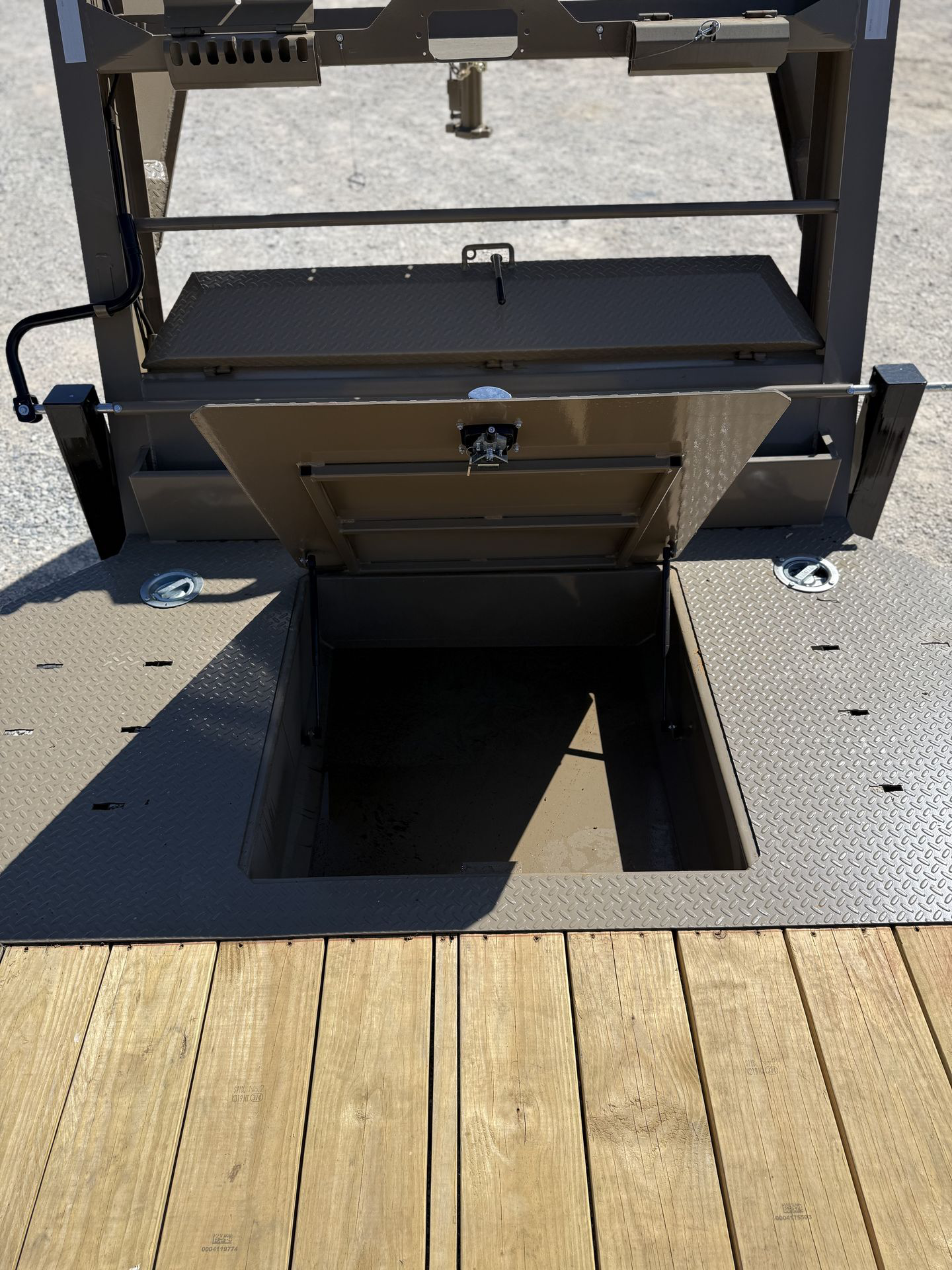

TOOLBOX: Lockable Toolbox

SAFETY SYSTEM

BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit

SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)

CHASSIS/FRAME

MAIN FRAME: " I-Beam (13 lbs/ft)

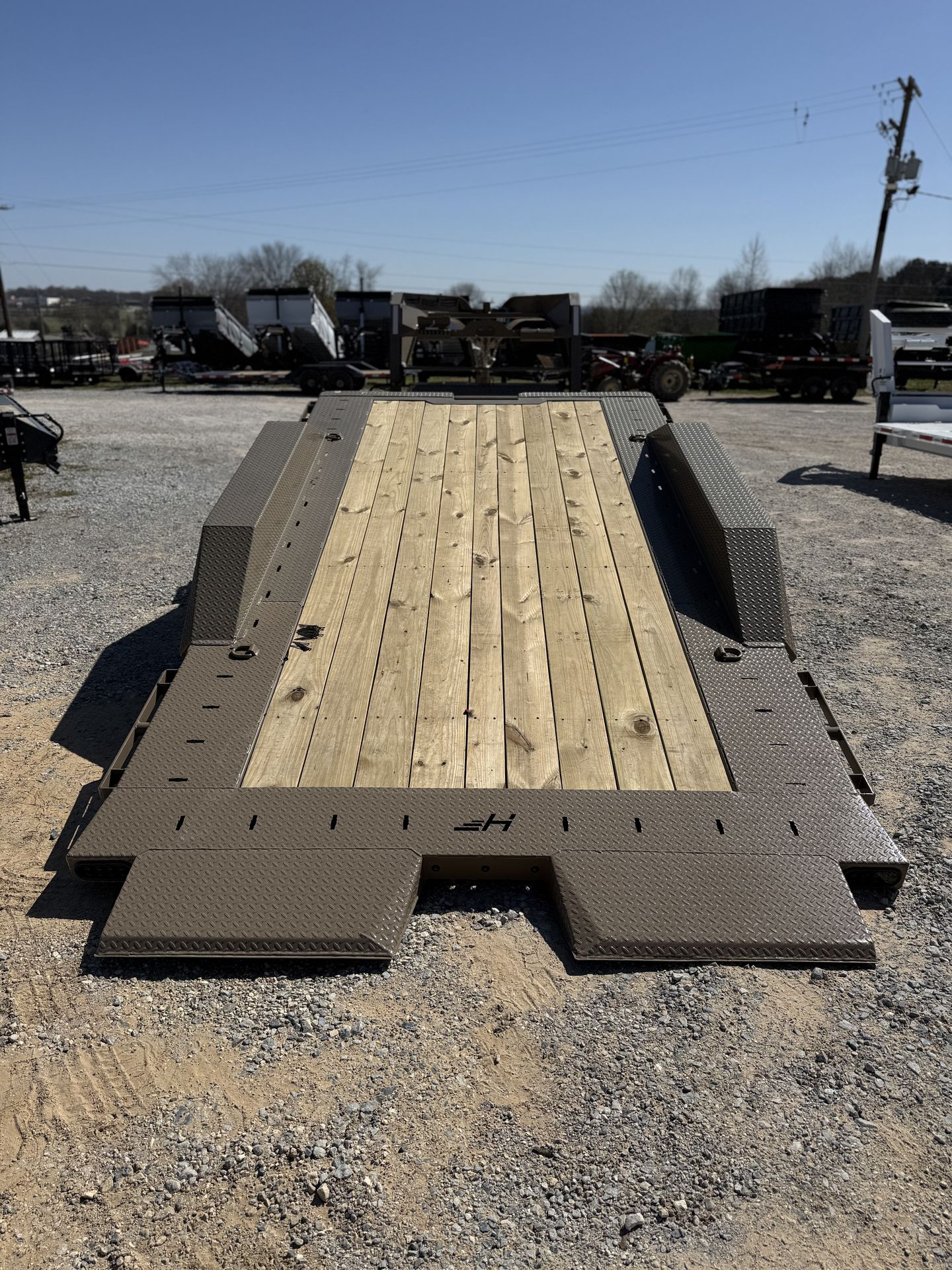

DECK/BED

DECK WIDTH: 102"

WIDTH BETWEEN FENDERS: 83"

DECK HEIGHT: 22"

FLOORING: Pine Lumber Floor

FRAME: 2" x 6" x 7ga. Tubing Bed Frame (Tilt)

CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing

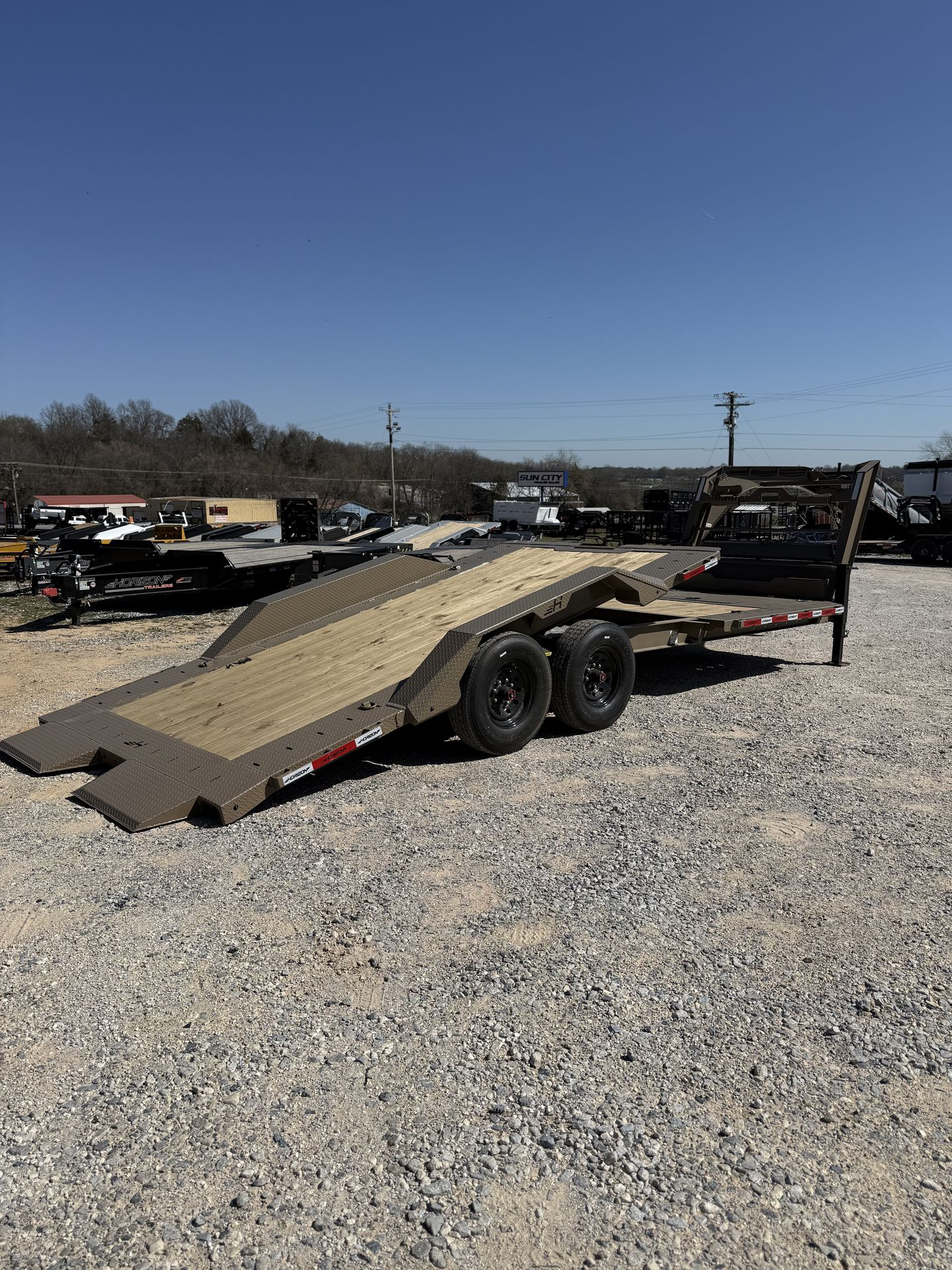

TILT: 16' Tilt Deck

TILT ANGLE: 13°

DECK FRAME: Fabricated 1/4" Diamond Plate

D-RINGS: 2 - D-Rings In Between Fenders

STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets (Spaced At 24")

FENDERS: 3/16" Diamond Plate Steel Drive Over Fenders

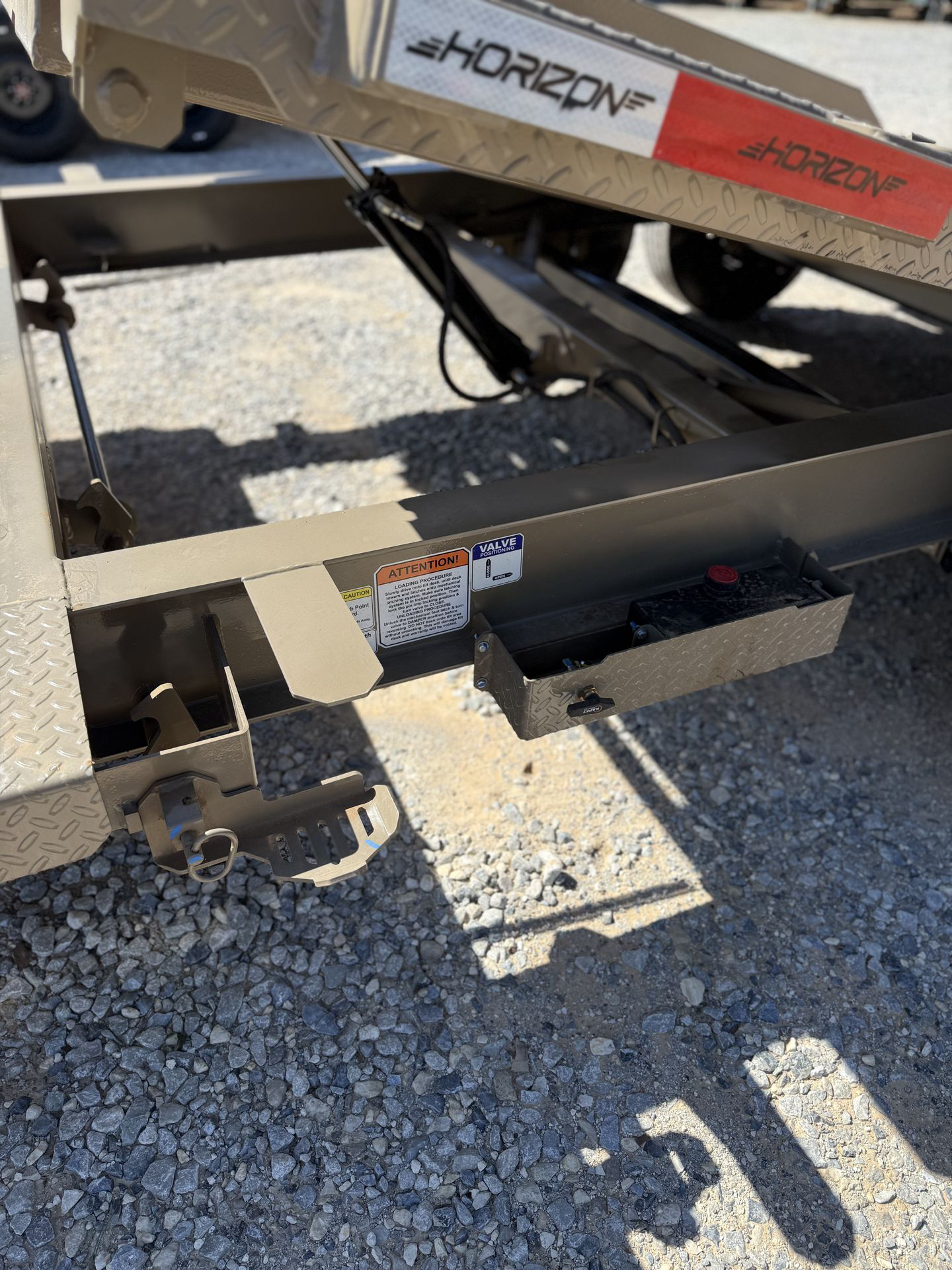

TILT SYSTEM/HYDRAULICS

SYSTEM: Gravity Up / Down

CYLINDER: 1 - 3" x 16" Cylinder

TANK: Large Reservoir

VALVE: 3 Way Valve Control

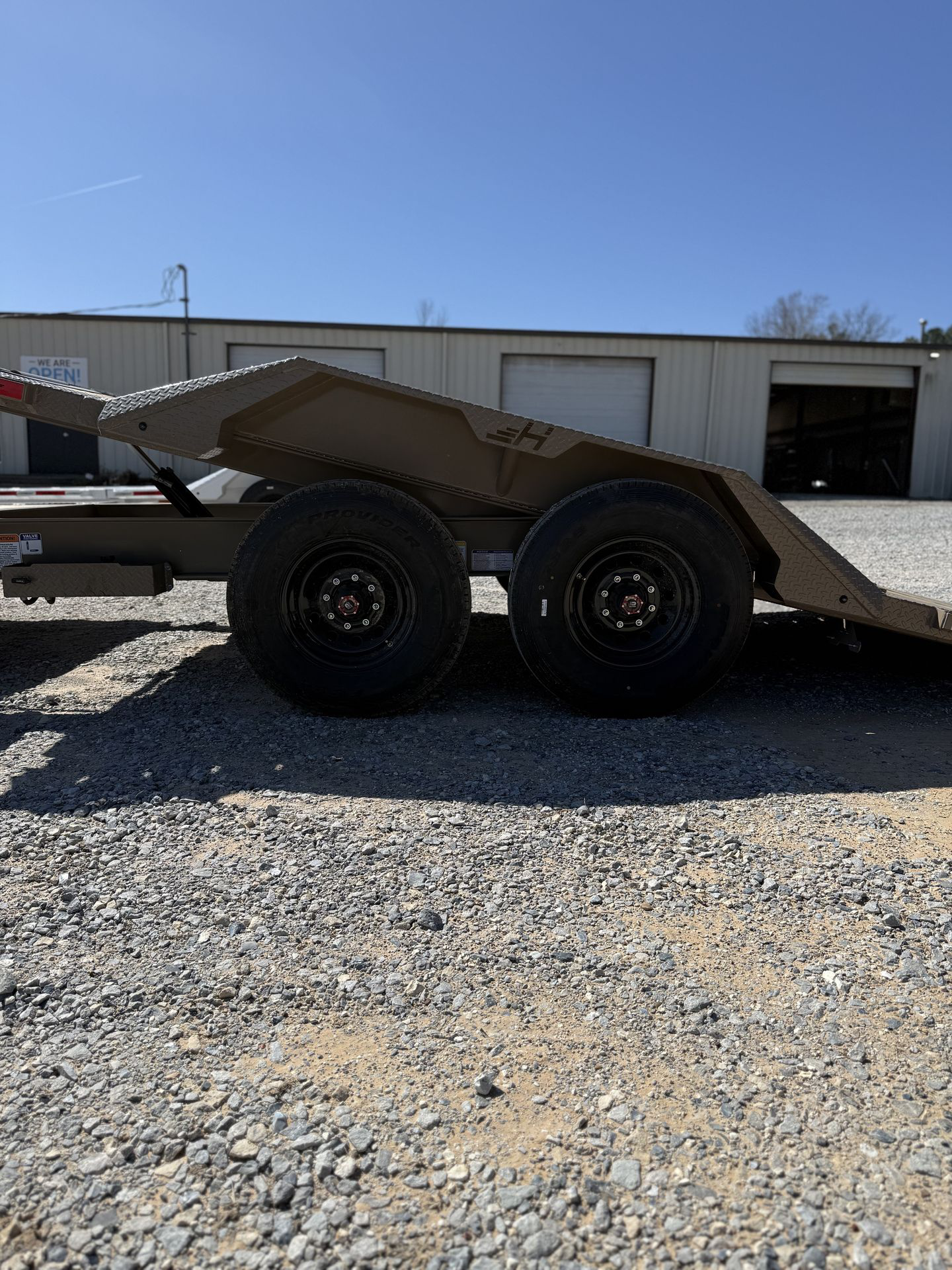

RUNNING GEAR/TIRES

TYPE: Radial Tires

SIZE: ST235/80R16

PLY: 14

RATING: 3,520 lbs

RIMS: 16" Black Mod Wheels

SUSPENSION

AXLE TYPE: 2 - 8k Dexter Electric Brake EZ Lube Torsion Axles

BOLT PATTERN: 8 On 6.5"

AXLE COUNT: 2

SUSPENSION TYPE: Torsion

AXLE WARRANTY: 6 Year Dexter Torsion Axle Warranty

ELECTRICAL AND LIGHTING/BATTERY AND CHARGING

WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)

FRAME WIRING: Double Insulated Wiring Harness

LIGHTING

LIGHTS: DOT Approved Tecniq LED Lights

SAFETY

REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
