Inventory / Horizon FYZ 34' Hydraulic Dovetail Gooseneck 12K (22'+12')

Springdale (SPR/Stock)

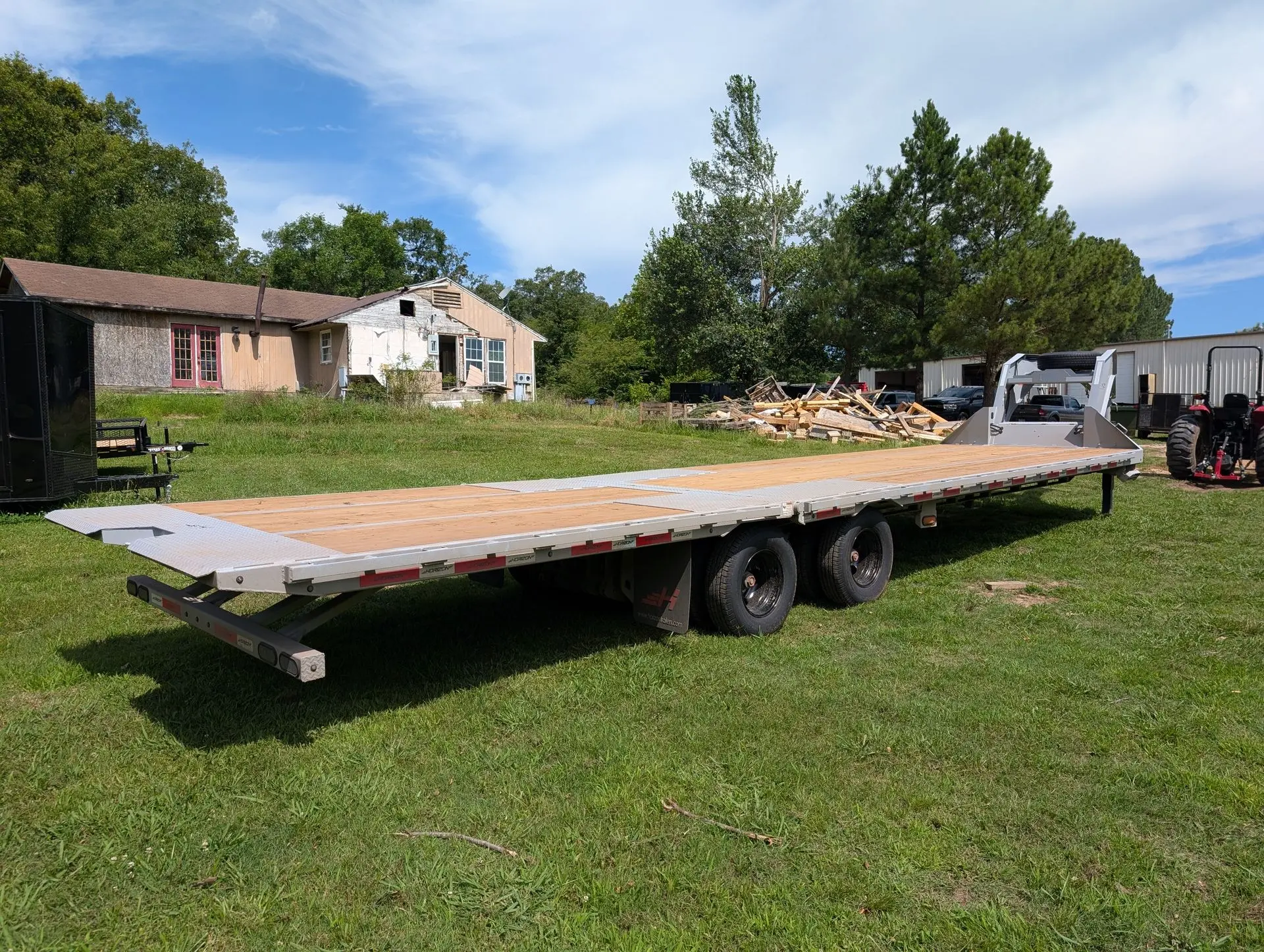

Horizon FYZ 34' Hydraulic Dovetail Gooseneck 12K (22'+12')

Low Stock Available Qty: 1.0

$ 25,995.00

VIN: 3H7GF3421SR010437

Stock #: 10437

Specifications

Year	2025
Manufacturer	Horizon Trailers
Model Number	FYZ 32' x 102"
Width	102"
Stock #	10437
Floor Length	34'
Axle Capacity	12,000 lbs
GVWR	25,000 lbs
Cargo Carrying Capacity	14,500 lbs
Unloaded Vehicle Weight	10,500 lbs
Color	Cloud Gray

Back to Inventory Contact This Location

Description

Standard Trailer Specs

DIMENSIONS

DECK LENGTH: 34'

DECK WIDTH: 102"

WEIGHT RATING

GAWR - 12,000 LBS

GVWR - 25,900 LBS

FINISH

PAINT TYPE - POWDERCOAT

PREP - STEEL GRIT BLASTED

WARRANTY

AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANTY

TRAILER WARRANTY: 3 YEAR FRAME / 1 YEAR PARTS WARRANTY

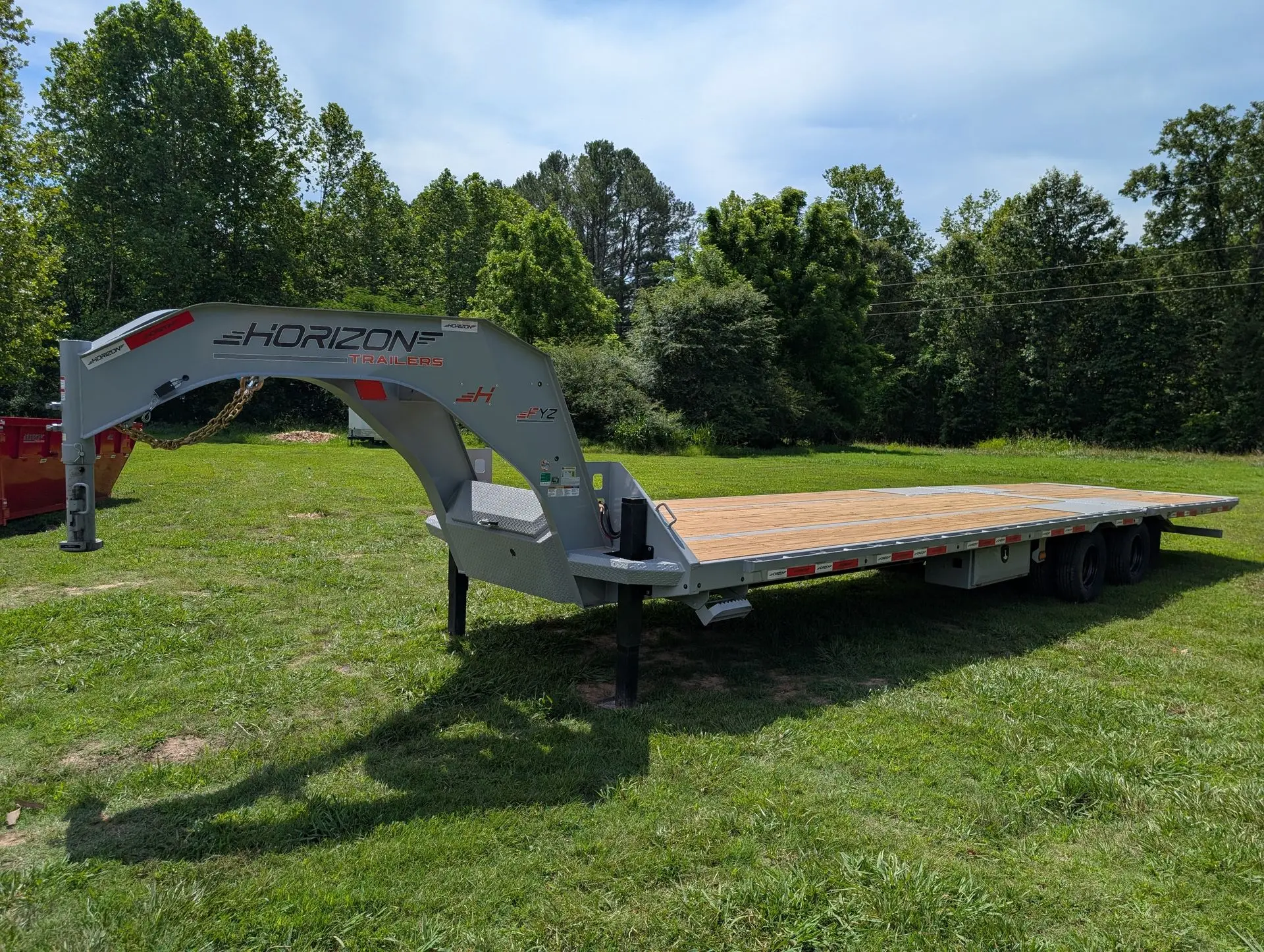

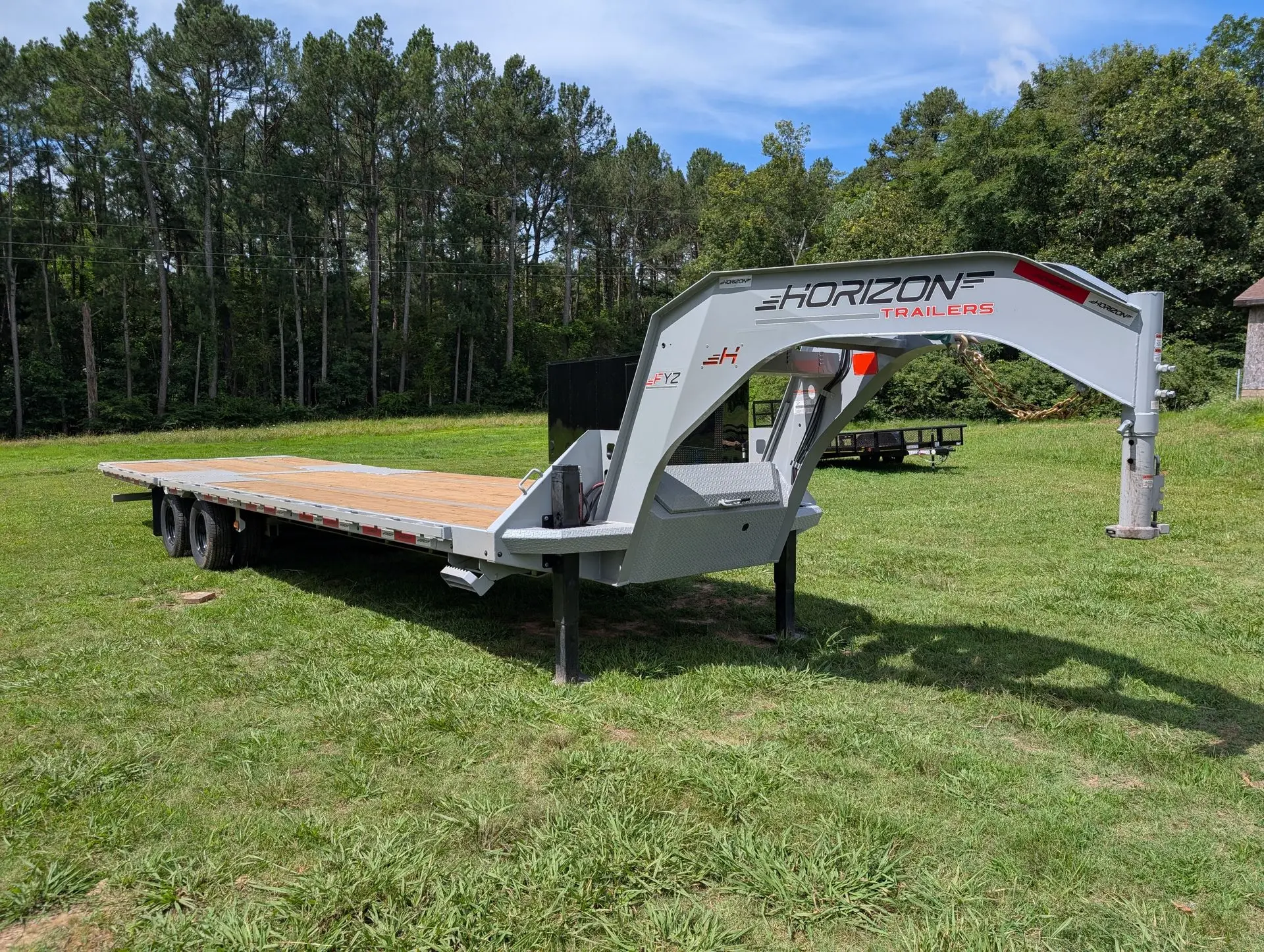

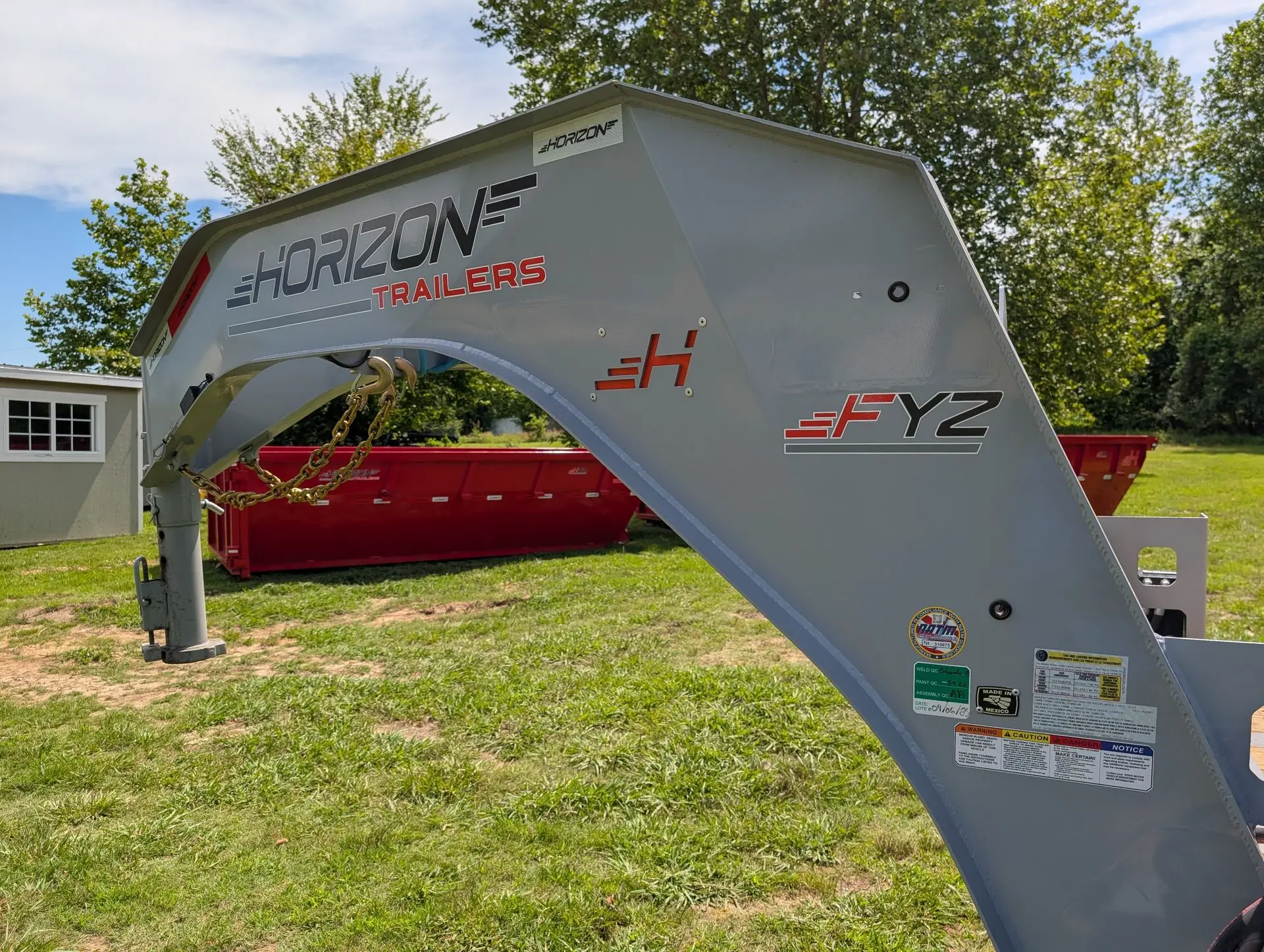

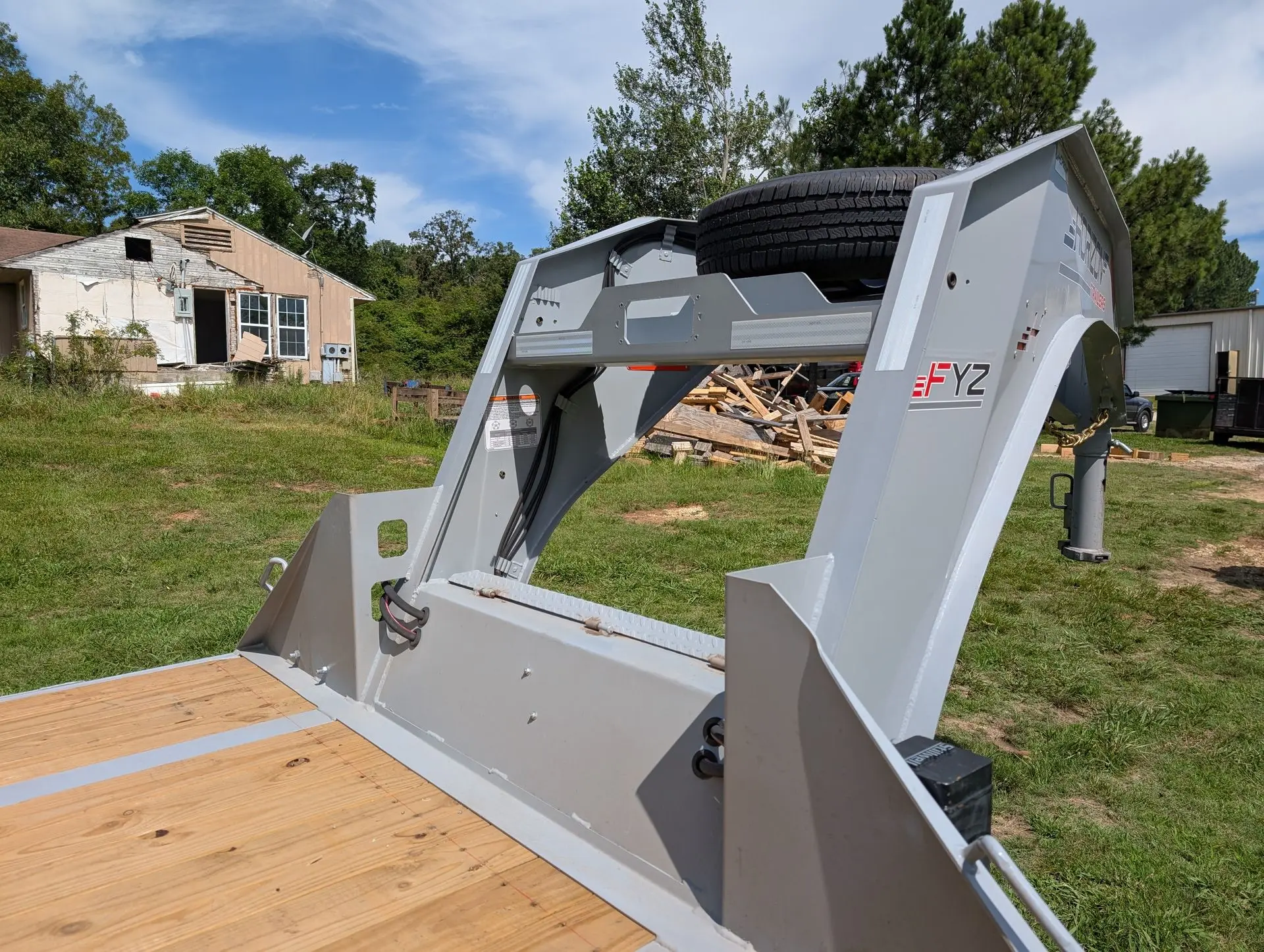

TONGUE

TONGUE TYPE: NECKBOSS 12" ENGINEERED I-BEAM

LENGTH: 98" LONG (FROM BEHIND RISER)

HEIGHT: 70" (FROM UNDERNEATH NECK)

SPARE: WELD ON SPARE TIRE MOUNT

STORAGE BEHIND NECK: STORAGE BOX / WINCH READY

COUPLER

STANDARD COUPLER: ADJUSTABLE 2-5/16" GN COUPLER (30,000 LBS]

JACKS

FRONT JACK: HYDRAULIC DROP LEG JACK (12,000 LBS]

TOOLBOX

TOOLBOX: MEGA LOCKABLE TOOLBOX

SAFETY

SAFETY CHAINS: 3/8" GRADE 70 SAFETY CHAIN W/CLEVIS HOOK [2 EACH)

CHASSIS/FRAME

MAIN FRAME: BRIDGED 12" I-BEAM (19 LBS/FT)

TORQUE TUBE30' AND UP ONLY: 4,1/2" TUBE

DOVETAIL FRAME: 10" ENGINEERED HIGH-TENSILE STEEL I-BEAM

SIDE

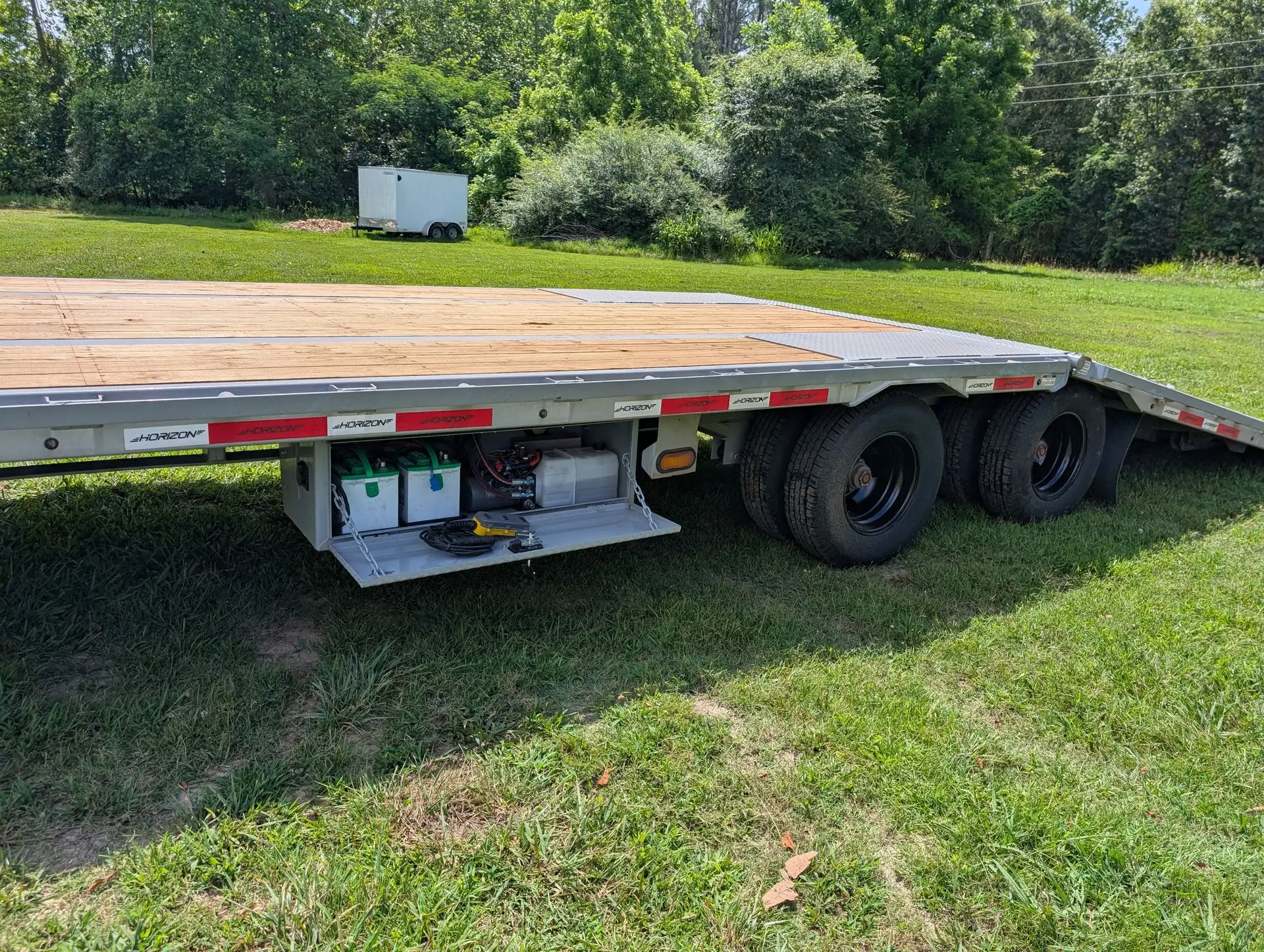

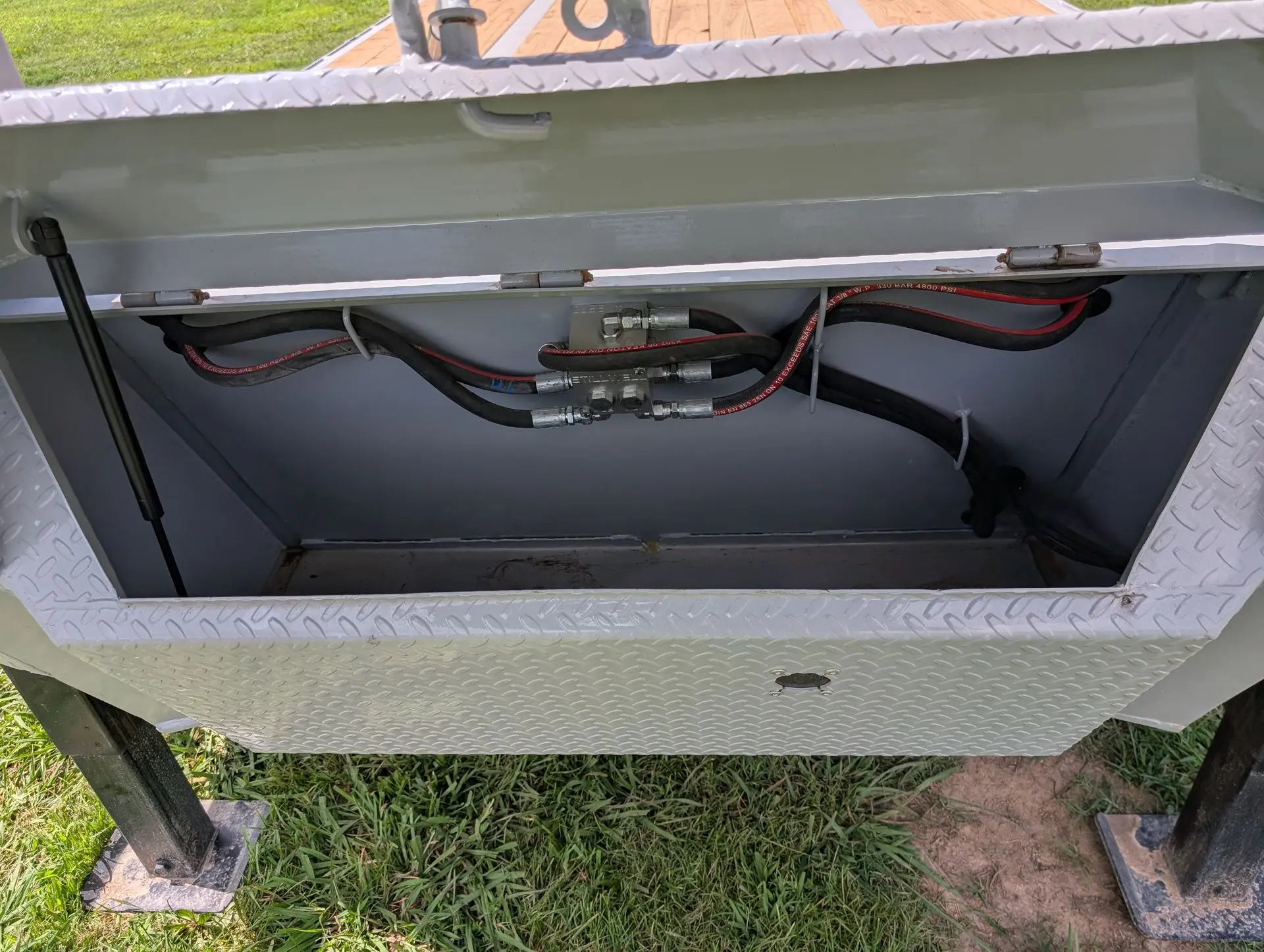

LEFT SIDE: LOCKABLE TOOLBOX (HOUSES BATTERIES AND PUMP)

BED

REAR OF DECK: 12' DOVETAIL

DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME

FLOORING: PINE LUMBER FLOOR

CROSSMEMBERS: 3" CHANNEL (3.50 LBS/FT] 16" SPACING

DECK HEIGHT: 34”

DECK WIDTH: 102”

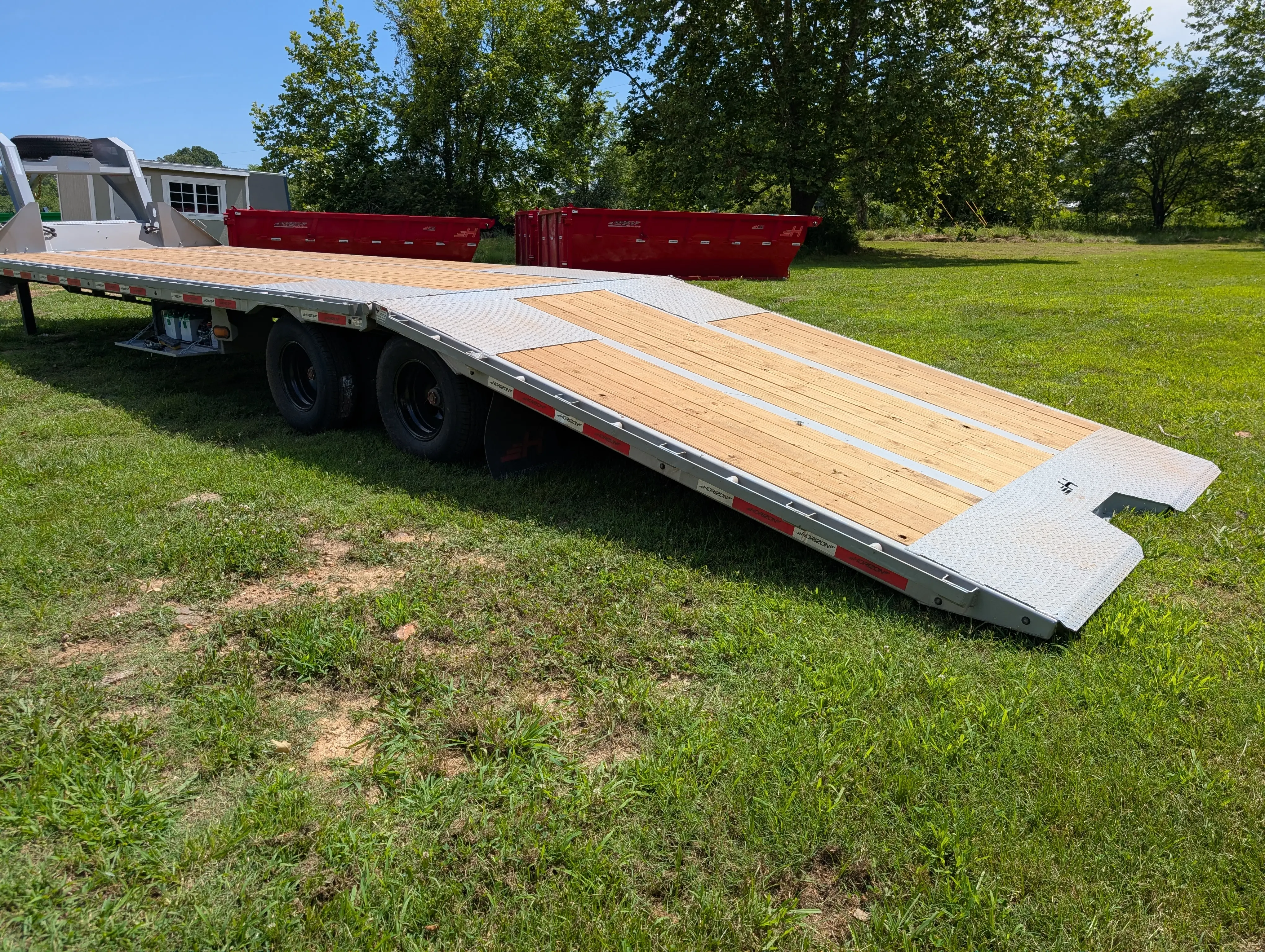

DOVETAIL

DECK FRAME: 2" X 6" X 7GA. TUBING BED FRAME

FLOORING: PINE LUMBER FLOOR

CROSSMEMBERS: 3" I-BEAM

DECK HEIGHT: 34"

DECK WIDTH: 102"

DOVETAIL LENGTH: 12'

HAULING CAPACITY: 10,000 LBS WHEN WEIGHT DISTRIBUTED ACROSS LENGTH OF DECK

TILT: 13° (TILT]

SIDES

RUB RAIL: 2" X 3/8" RUB RAIL

STAKE POCKETS: 1,5/8" X 3,5/8" (ID] STAKE POCKETS (SPACED AT 24"]

SPOOLS: 2" X 10GA. PIPE SPOOLS (SPACED AT 24")

SIDES: SLIDE IN SIDE STEP ON BOTH SIDES

LIFT SYSTEM/HYDRAULICS

SYSTEM: 4 BUTTON HYDRAULIC - POWER UP / POWER DOWN

PUMP: KTI 12V HYDRAULIC PUMP

CONTROLLER: 14' CONTROL CABLE

WIRELESS CONTROLLER: TUFF WIRELESS 2 BUTTON WIRELESS REMOTE

12' DOVETAIL

CYLINDERS: 2 - 4" X 16" SINGLE PUSH CYLINDERS

LIFT CAPACITY: 10,000 LBS WHEN WEIGHT DISTRIBUTED ACROSS LENGTH OF DECK

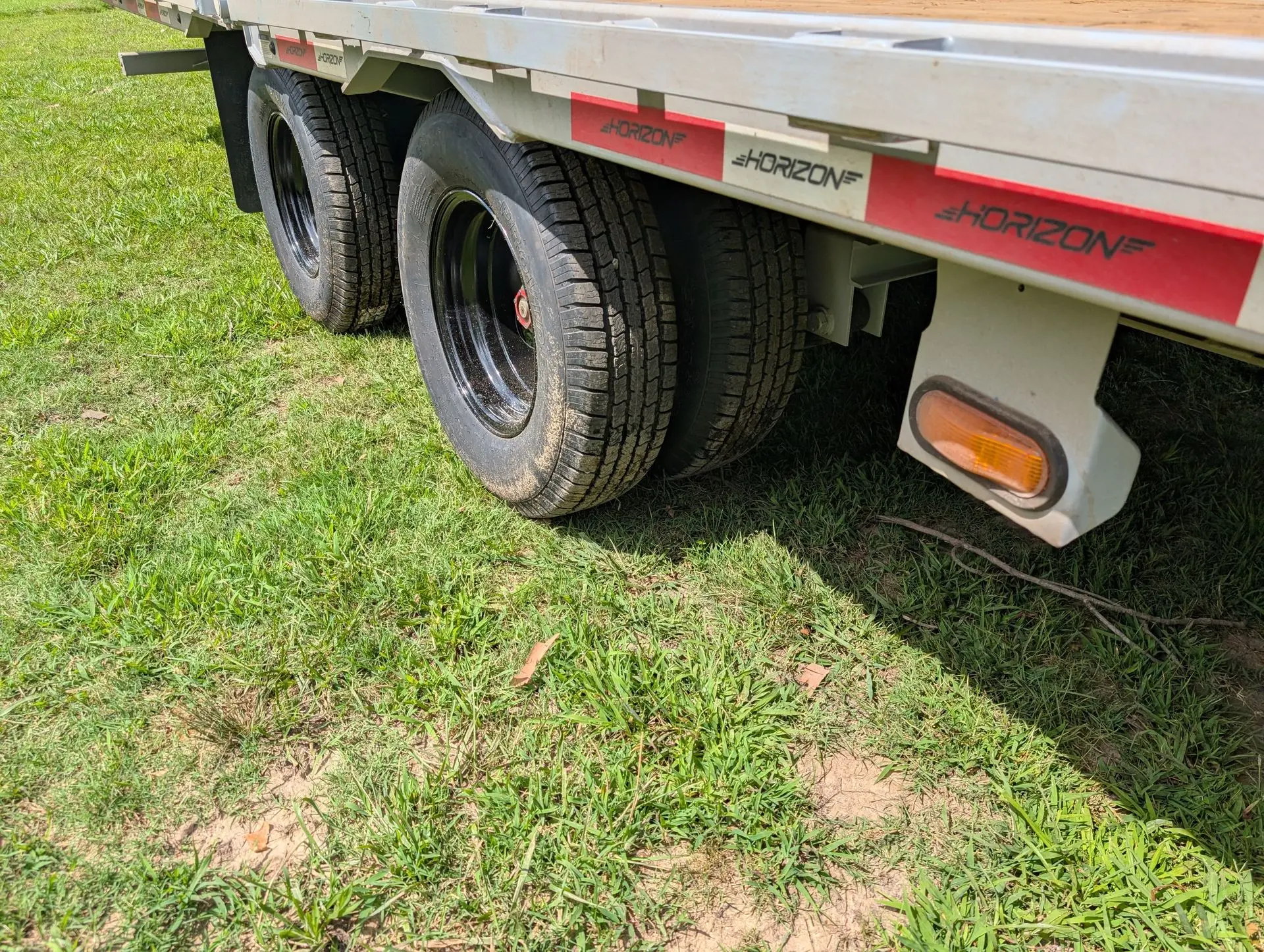

RUNNING GEAR/TIRES

TYPE: RADIAL TIRES

SIZE: ST235/80 R17.5, DUAL

PLY: 14

RATING: 3,080 LBS

RIMS: 17.5" BLACK MOD WHEELS

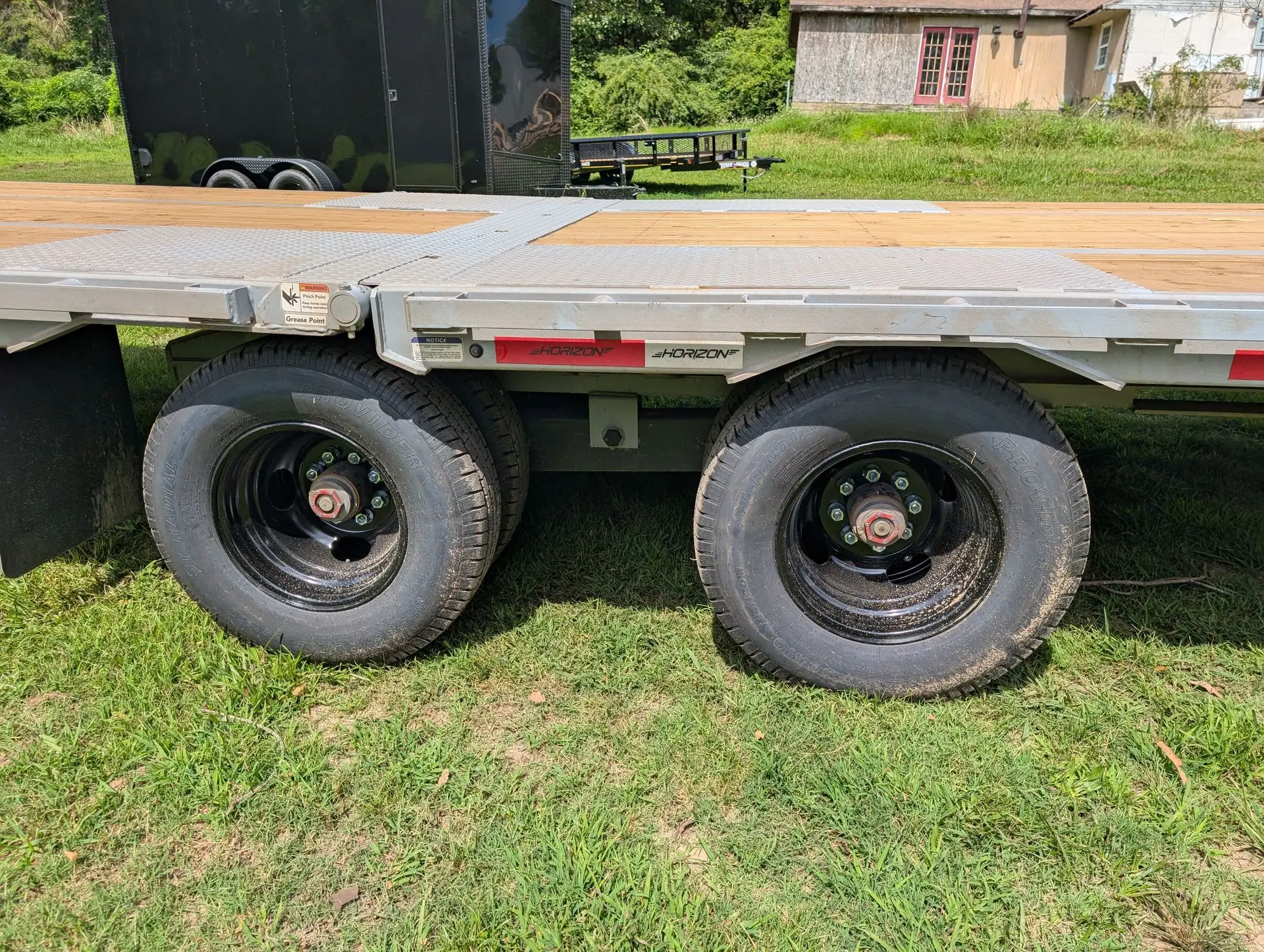

SUSPENSION

AXLE TYPE: 12K LIPPERT ELECTRIC BRAKE AUTO ADJUST DUAL OIL BATH SPRING AXLES

BOLT PATTERN: 8 ON 6.5'

AXLE COUNT: 2

SUSPENSION TYPE: SPRING

AXLE WARRANTY: 6 YEAR LIPPERT SPRING AXLE WARRANT

ELECTRICAL AND LIGHTING/BATTERY AND CHARGING

BATTERY: 2 - INTERSTATE 27 DEEP CYCLE BATTERIES

WIRING HARNESS: ALL-WEATHER WIRING HARNESS (7-WAY RV)

FRAME WIRING: DOUBLE INSULATED WIRING HARNESS

LIGHTING

LIGHTS: DOT APPROVED TECNIQ LED LIGHTS
