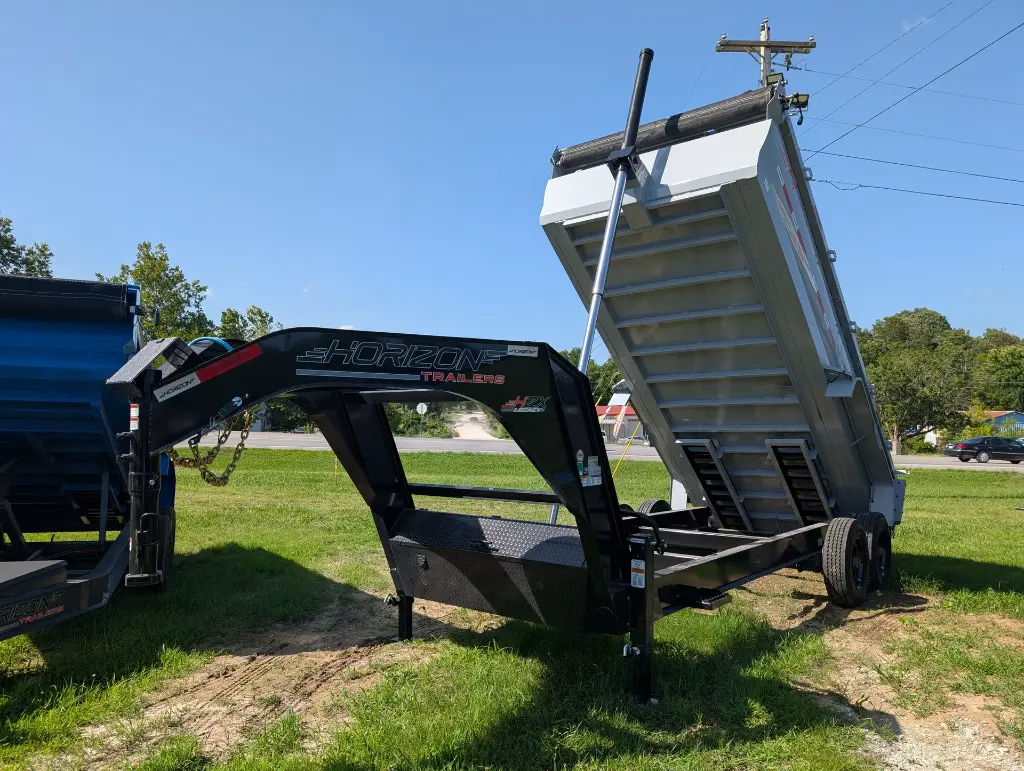

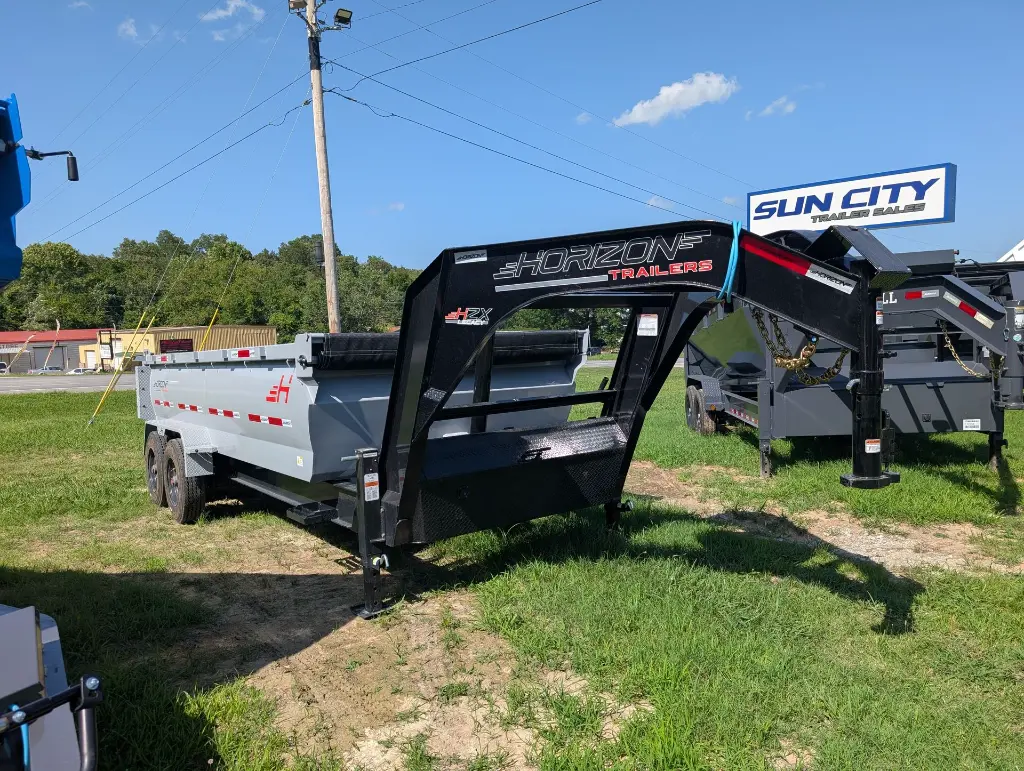

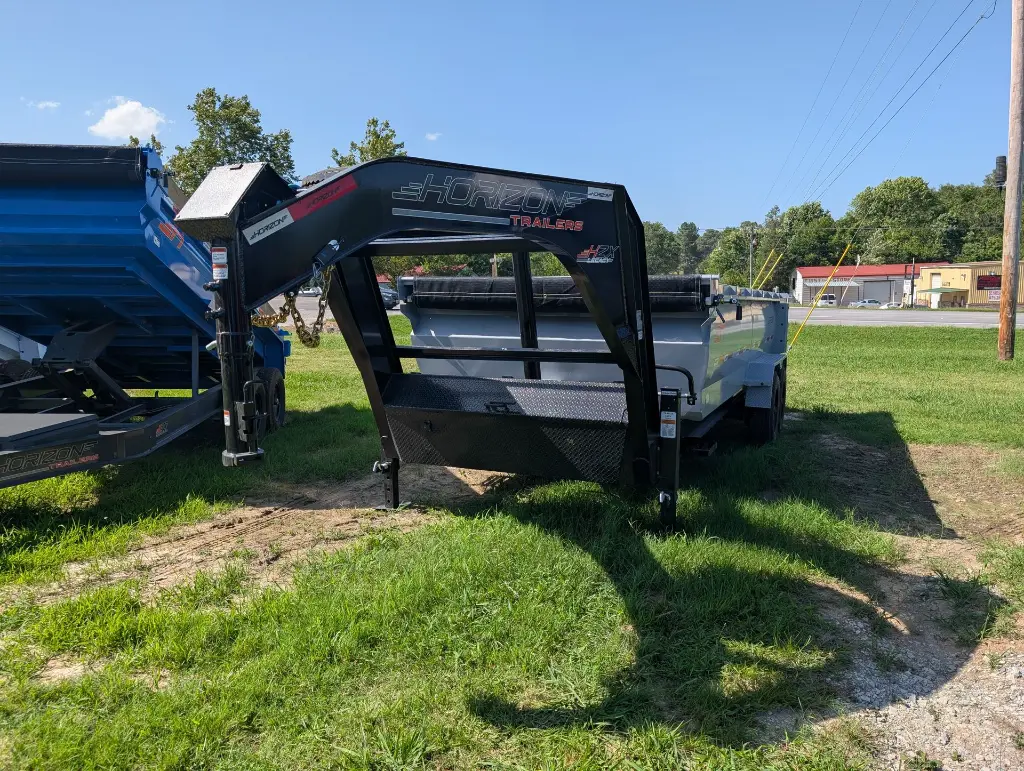

Horizon HZX 16' Gooseneck Dump Trailer 10K
| Stock # | 11575 |
| Year | 2025 |
| Manufacturer | Horizon Trailers |
| Model Number | HZX 16' x 83" GN |
| Color | Black/Cloud Gray |
| Floor Length | 16' |
| Width | 83" |
| Side Height | 3' |
| GVWR | 22,400 lbs |
| Axle Capacity | 10,000 lbs |
| Location | Springdale, AR |
Barcode:
3H7GD1626TR011575
Internal Reference:
11575
Standard Trailer Specs
DIMENSIONS
LENGTH: 16'
SIDE HEIGHT: 3'
BED WIDTH: 83"
BED HEIGHT: 28"
WEIGHT RATINGS
GAWR: 10,000 lbs
GVWR GN: 22,400 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
STYLE: 2 Tone Colors Available, Chassis / Dump
WARRANTY
AXLE WARRANTY: 11 Year Lippert Torsion Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
SPARE: Weld On Spare Tire Mount
COUPLER
STANDARD COUPLER GN: Adjustable 2-5/16" Gn Coupler (30,000 lbs)
JACKS
FRONT JACKS GN: 2 Side Wind Spring Loaded Drop Jack Legs (12,000 lbs)
TOOLBOX
TOOLBOX GN: Lockable Toolbox Houses Battery & Pump (w/ Extra Storage)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 3/8" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 10" I-Beam (17 lbs/ft)
STEPS: Side Step On Both Sides
BED
BED WIDTH: 83"
BED HEIGHT: 28"
FLOORING: 7ga. Floor
FRAME: 5" x 5" x 5/16" Angle Iron (10.3 lbs/ft)

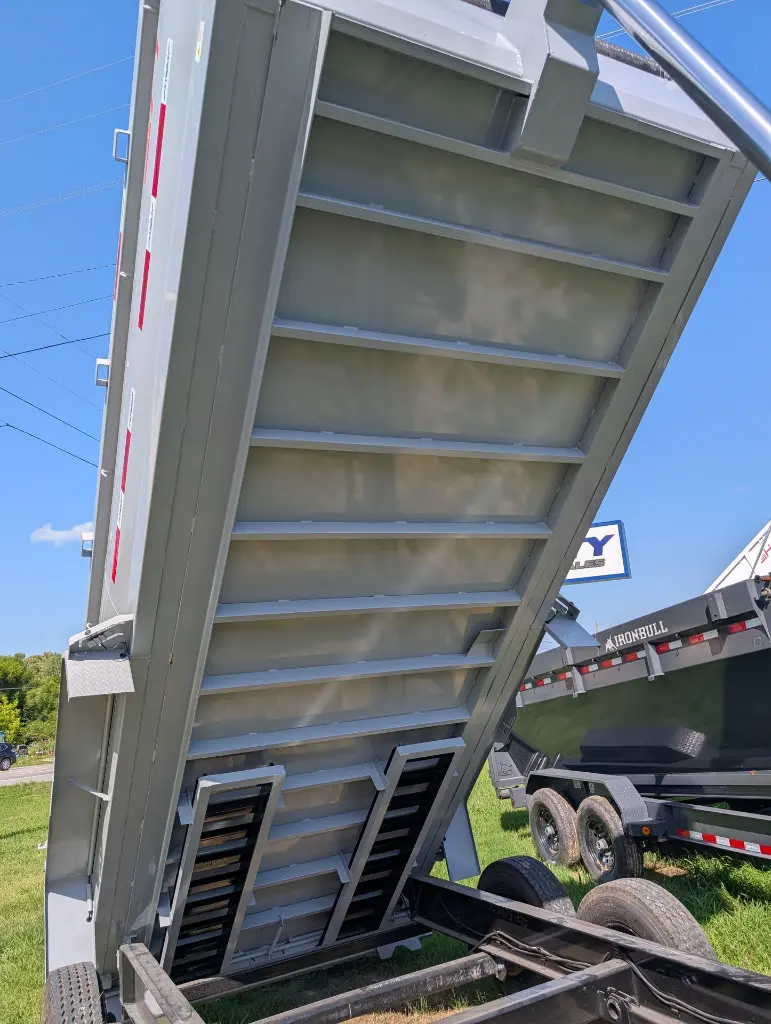

CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
D-RINGS: 4 D Rings Welded Inside Box

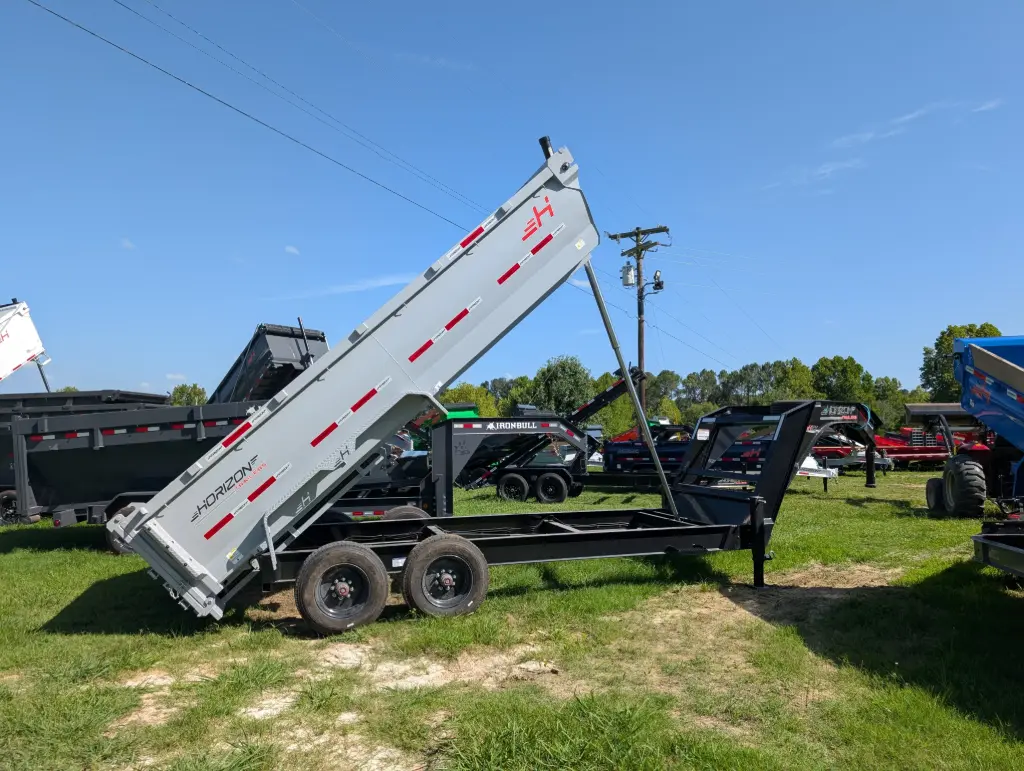

DUMP ANGLE: 44° - 48°
REAR/FRAME

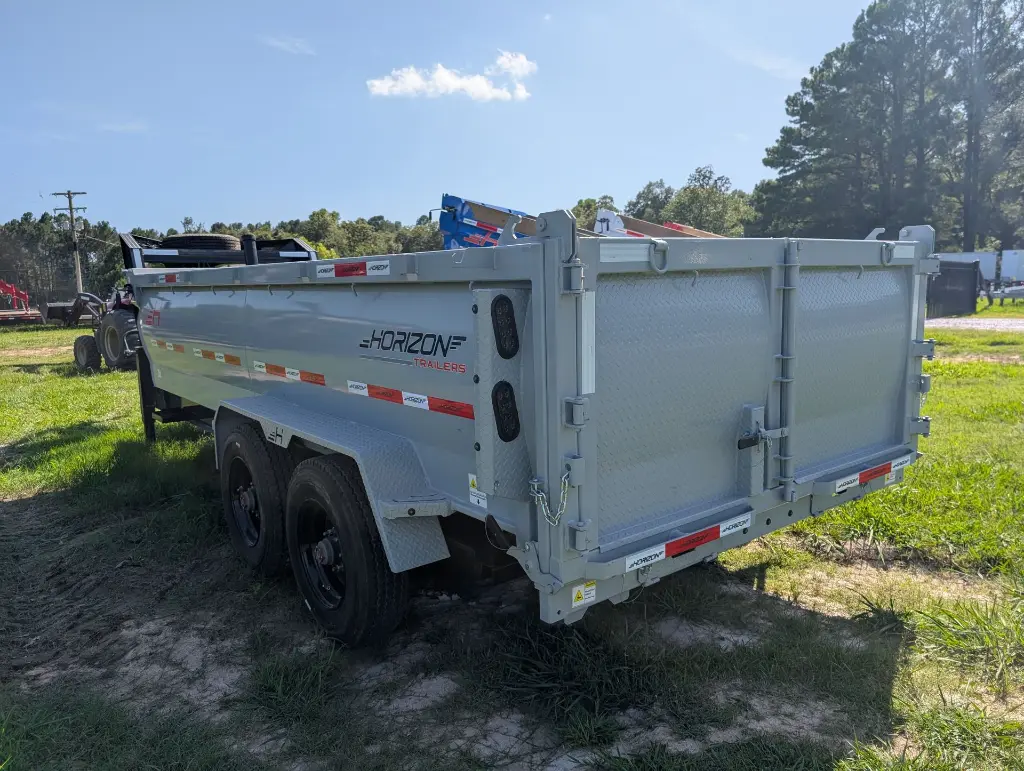

GATE: 2 Way Door

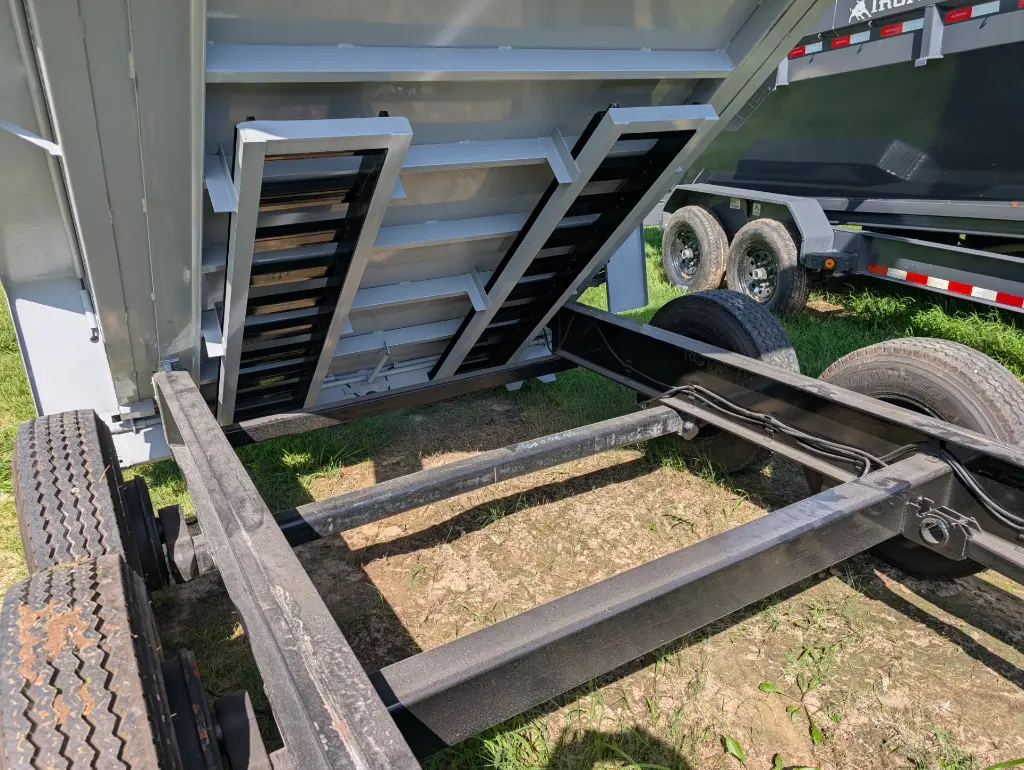

RAMPS: Ramp Pockets w/2 - 6' 4" Heavy Duty Slide In 4" Channel Ramps (5,000 lbs each)
SIDES
HEIGHT: 3'
THICKNESS: 10ga.
TYPE: Rounded Steel
TOP RAIL: 3" x 5" x 11ga. Tubing
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets
HOOKS: 3/8" Round "L" Hooks

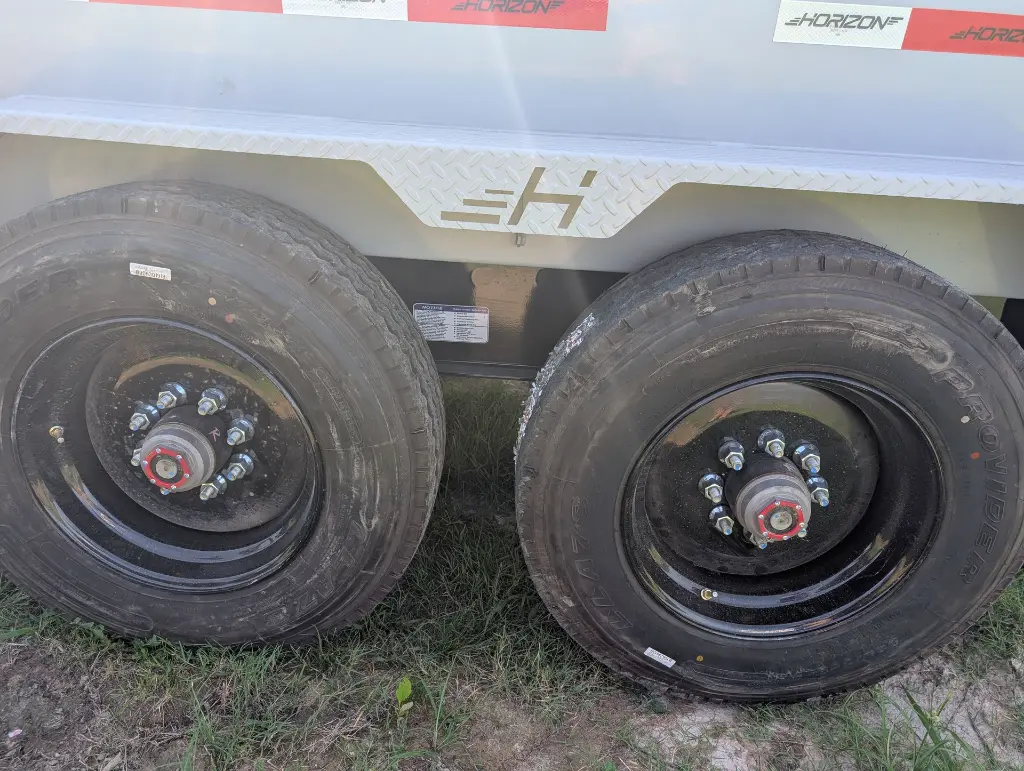

FENDERS: 12ga. Diamond Plate Steel Fenders
REAR STANDS: Pair Of Rear Stabilizer Stands

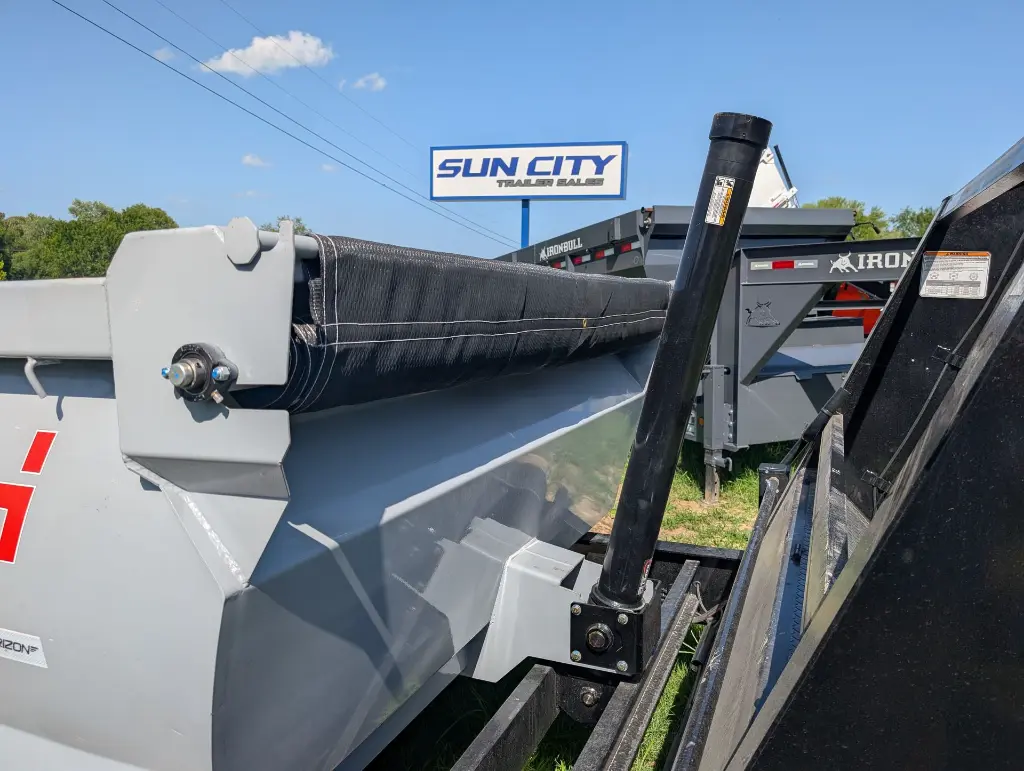

TARP: Manual Tarp Kit
LIFT SYSTEMS
SYSTEM: 2 Button Hydraulic - Power Up / Gravity Down
PUMP: KTI 12V Hydraulic Pump
CONTROLLER: 14' Control Cable
HYDRAULICS
DUMP LIFT: 12 Ton Telescopic Cylinder
