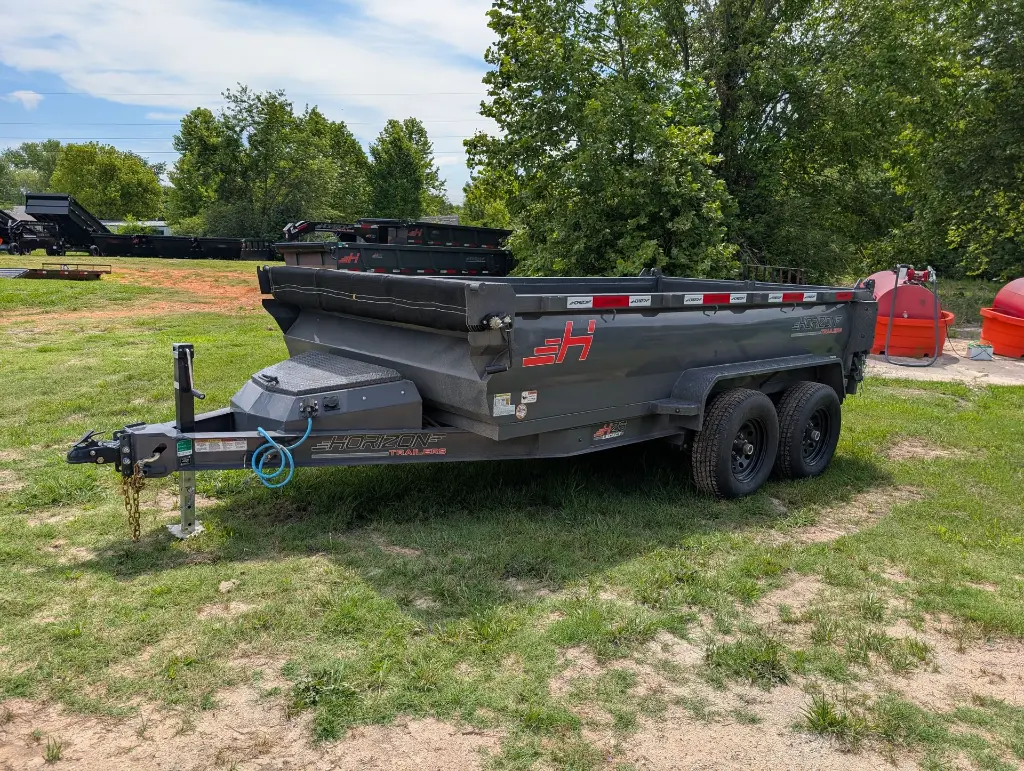

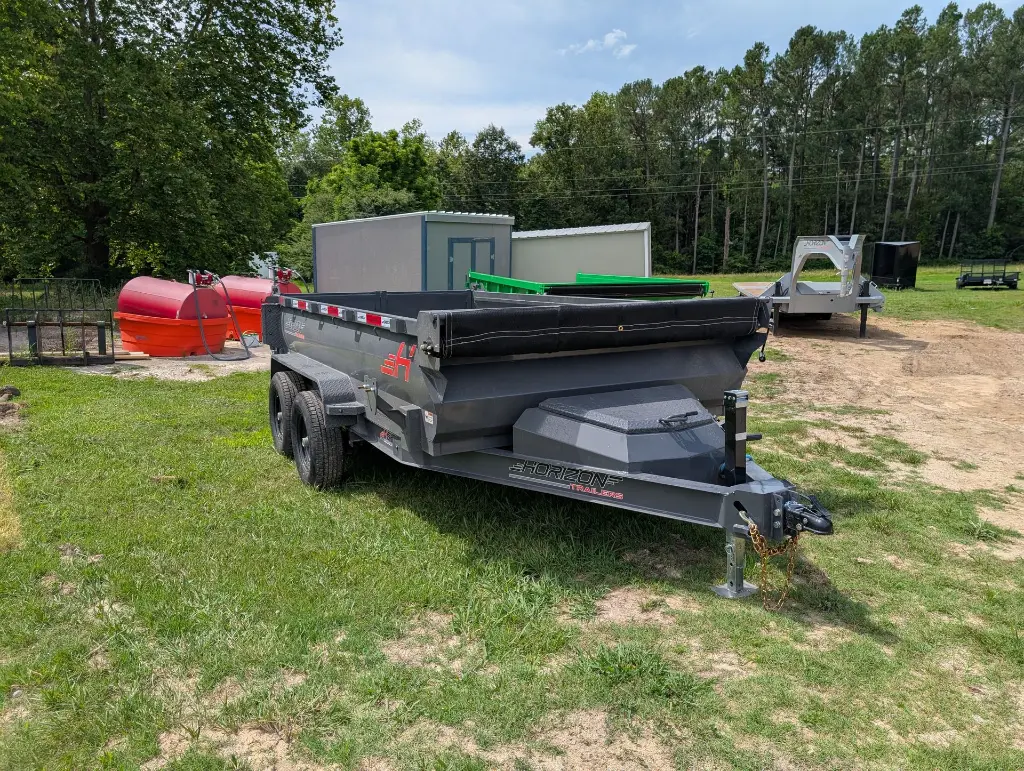

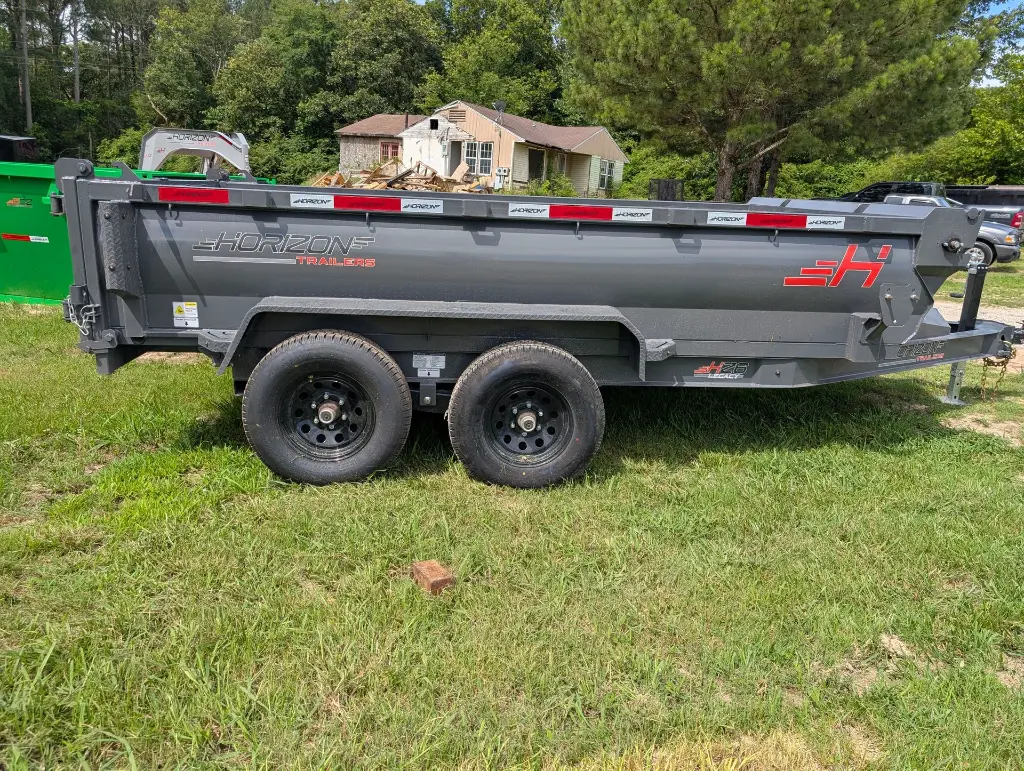

Horizon HZ6 12' Dump Trailer 5.2K
| Stock # | 10703 |
| Year | 2025 |
| Manufacturer | Horizon Trailers |
| Model Number | HZ6 12' x 77" |
| Floor Length | 12' |
| Width | 77" |
| Side Height | 2' |
| Color | Ash Gray |
| GVWR | 11,300 LBS |
| Unloaded Vehicle Weight | 3,200 LBS |
| Cargo Carrying Capacity | 8,100 LBS |
| Axle Capacity | 5,200 lbs |
| Location | Springdale, AR |
Barcode:
3H7BD1228SR010703
Internal Reference:
10703
Standard Trailer Specs
Standard Trailer Specs
DIMENSIONS
LENGTHS: 12'
SIDE HEIGHT: 24"
BED WIDTH: 77"
BED HEIGHT: 24"
WEIGHT RATINGS
GAWR: 5,200 lbs
12' Dump 2 Axles GVWR: 11,300 lbs
ESTIMATE DRY WEIGHT: 3,200 lbs
ESTIMATE PAYLOAD: 8,100 lbs
ESTIMATE TONGUE WEIGHT: 300 lbs
FINISH
PAINT TYPE: Powdercoat
PREP: Steel Grit Blasted
STYLE: 2 Tone Colors Available, Chassis / Dump
WARRANTY
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
TRAILER WARRANTY: Three (3) Year Frame/One (1) Year Parts Warranty
TONGUE
TYPE: 6" I-Beam (8.5 lbs/ft)
LENGTH: 50"
COUPLER
STANDARD COUPLER: Adjustable 2-5/16" BP Coupler (15,000 lbs)
JACKS
FRONT JACK: 1 Side Wind Drop Jack Leg (7000 lbs)
TOOLBOX
TOOLBOX: Lockable Toolbox Bp (Houses Battery and Pump)
SAFETY SYSTEM
BREAKAWAY SYSTEM: 2382 Brightway Group Electric Breakaway Kit
SAFETY CHAINS: 1/4" Grade 70 Safety Chain w/Clevis Hook (2 each)
CHASSIS/FRAME
MAIN FRAME: 6" I-Beam (8.5 lbs/ft)

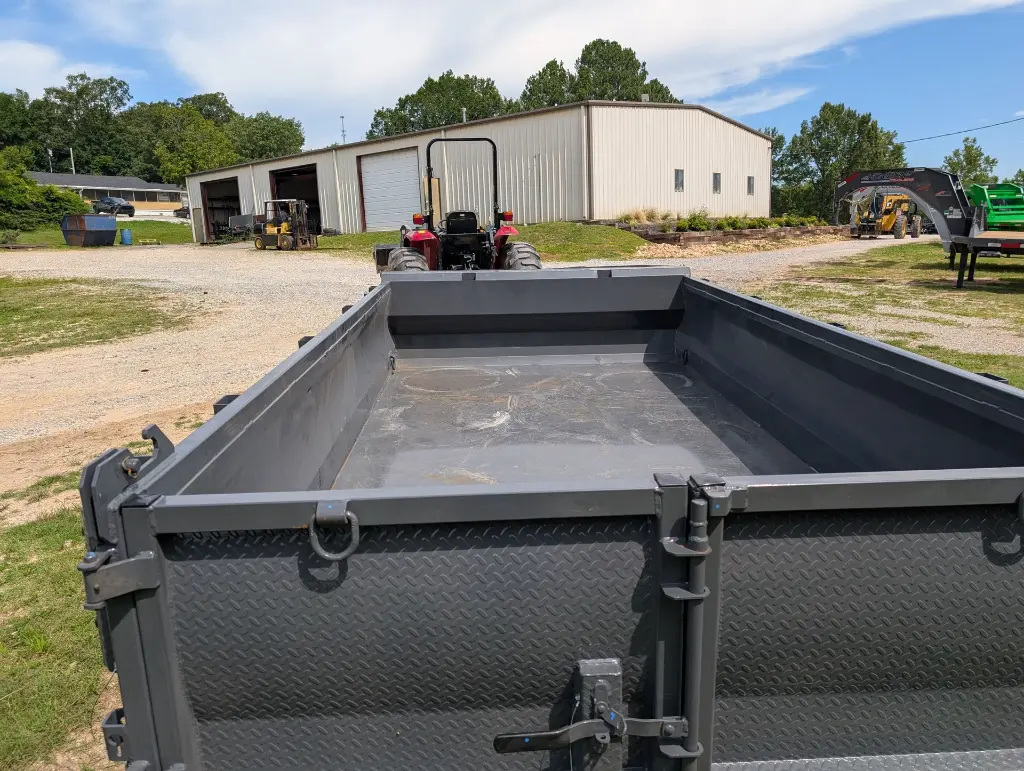

DUMP/BED
BED WIDTH: 77"
BED HEIGHT: 24"
FLOORING: 10ga. Floor
FRAME: 3" x 3" x 3/16" Angle Iron (3.70 lbs/ft)
CROSSMEMBERS: 3" Channel (3.50 lbs/ft) 16" Spacing
D-RINGS: 4 D Rings Welded Inside Box
DUMP ANGLE 8': 44°
DUMP ANGLE 10': 42°

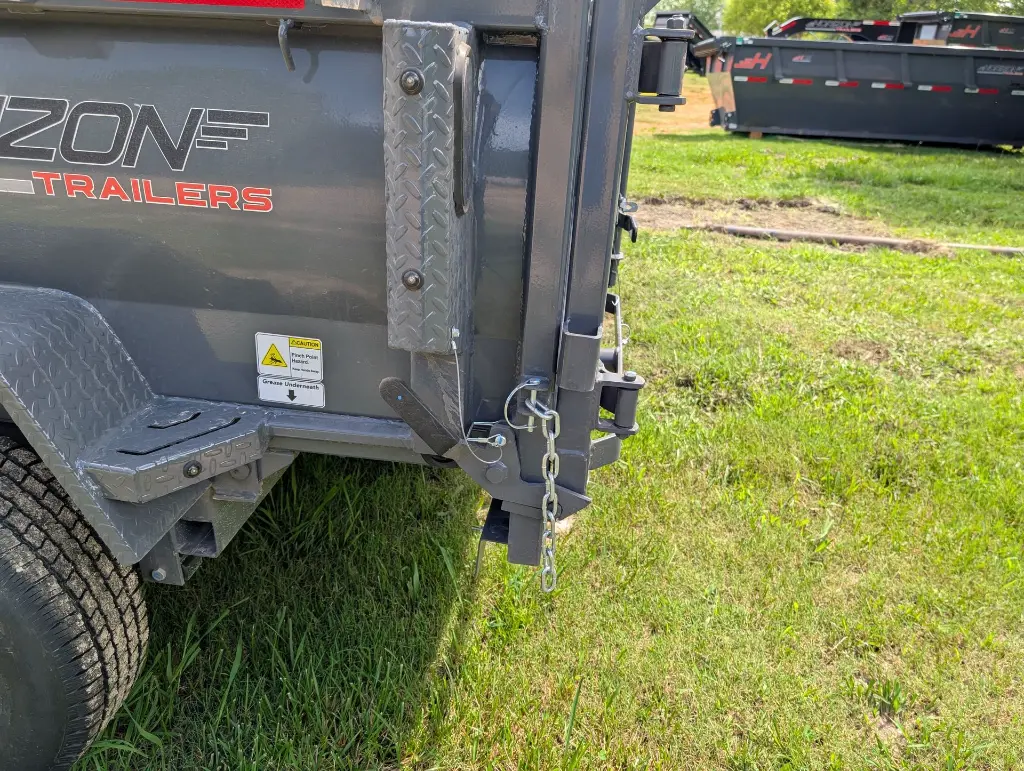

REAR
GATE: 2 Way Door
SIDES
HEIGHT: 24"
THICKNESS: 12ga.
TYPE: Rounded Steel
TOP RAIL: 2" x 3" x 11ga. Tubing
STAKE POCKETS: 1,5/8" x 3,5/8" (ID) Stake Pockets
HOOKS: 3/8" Round "L" Hooks
FENDERS: 14ga Diamond Plate Steel Fenders

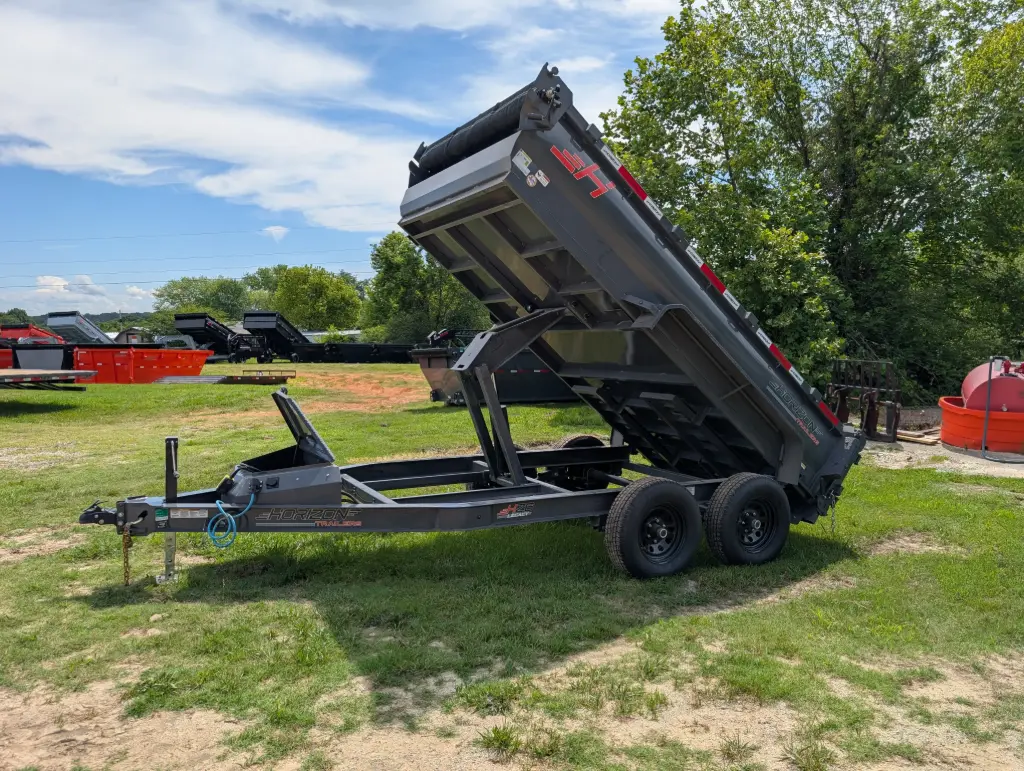

LIFT SYSTEM/HYDRAULICS
SYSTEM: Hydraulic - Power Up / Gravity Down
PUMP: KTI 12V Hydraulic Pump
CONTROLLER: 14' Control Cable
DUMP LIFT
CYLINDER: 5" x 10" Single Push Cylinder
HOIST CAPACITY: 15,000 lbs

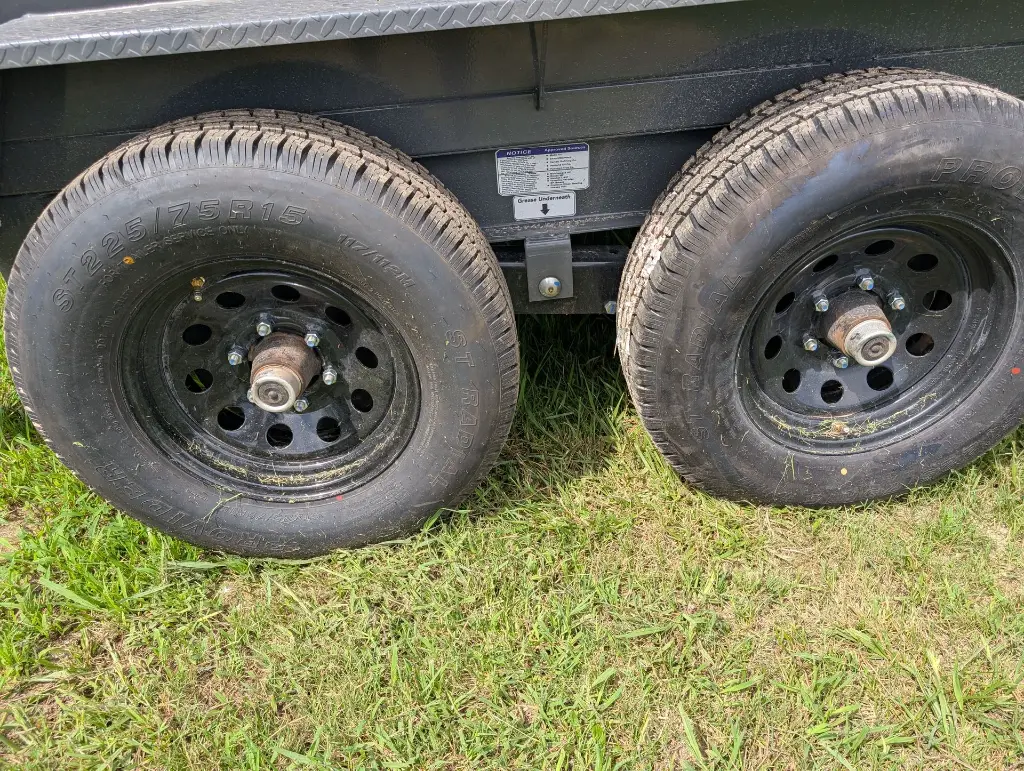

RUNNING GEAR/TIRES
TYPE: Radial Tires
SIZE: ST225/75R15
PLY: 10
RATING: 2,830 lbs
RIMS: 15" Black Mod Wheels
SUSPENSION
AXLE TYPE: 3.5k Lippert Electric Brake EZ Lube Spring Axles
BOLT PATTERN: 6 On 6.5"
AXLE COUNT: (1 Axle 8 Ft Dump) (2 Axles 10 Ft Dump)
SUSPENSION TYPE: Spring
AXLE WARRANTY: 6 Year Lippert Spring Axle Warranty
ELECTRICAL AND LIGHTING/BATTERY AND CHARGING
BATTERY: 1 - Interstate 27 Deep Cycle Battery
CHARGING SYSTEM: 110V Integrated Trickle Charger
WIRING HARNESS: All-Weather Wiring Harness (7-Way RV)
FRAME WIRING: Double Insulated Wiring Harness
LIGHTING
LIGHTS: DOT Approved Tecniq LED Lights
SAFETY
REFLECTIVE TAPE: 3M Dot Compliant Reflective Tape
